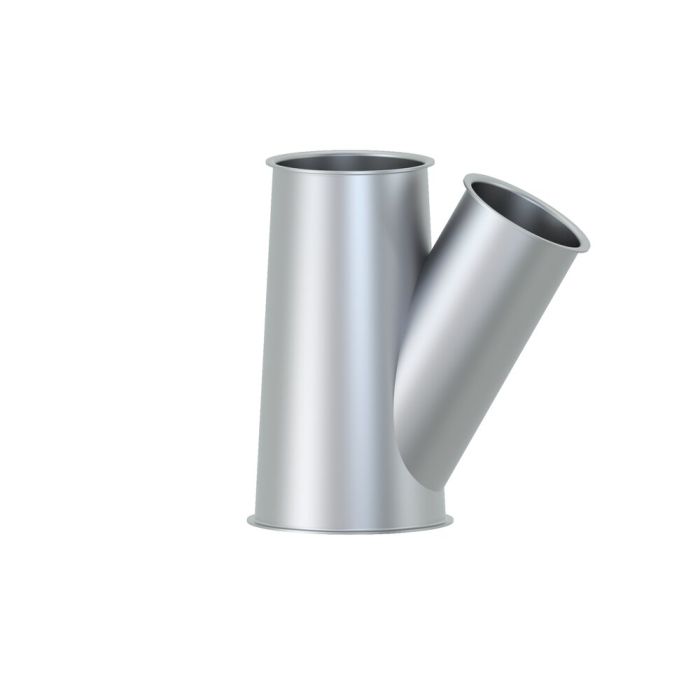

conical fork piece 30°, diam. 120/100/100x2 mm
KMH item number
1223032
stainless steel 1.4301, blasted
Availability
conical fork piece 30°, diam. 120/100/100x2 mm, stainless steel 1.4301, blasted
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 290 mm |
| dimensions b | 235 mm |
| dimensions c | 25 mm |
| dimensions dlw | 119 mm |
| dimensions dlw1 | 99 mm |
| dimensions dlw2 | 99 mm |
| dimensions e | 267 mm |
| dimensions f | 23 mm |
| coating | blasted |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 100 |
| material | 1.4301 |
| nominal width | 120,100 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 29 80 |
| weight in kg | 2,3400 |
| Remark | mistakes and amendments reserved |
