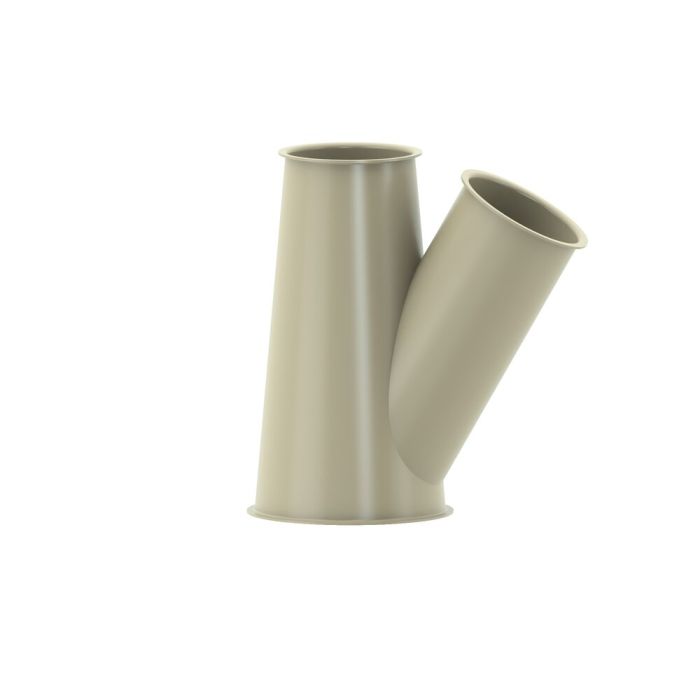

conical fork piece 30°, diam. 150/100/100x1,5 mm
KMH item number
1511034-1
steel DC01, powder coated (RAL color)
Availability
conical fork piece 30°, diam. 150/100/100x1,5 mm, steel DC01, powder coated inside and outside (RAL color)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 290 mm |
| dimensions b | 230 mm |
| dimensions c | 25 mm |
| dimensions dlw | 149 mm |
| dimensions dlw1 | 99 mm |
| dimensions dlw2 | 99 mm |
| dimensions e | 289 mm |
| dimensions f | –1 mm |
| coating | powder coated (RAL) |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 100 |
| material | DC01 |
| nominal width | 150,100 |
| material thickness | 1,5 mm |
| conductivity | no |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 1,8800 |
| Remark | mistakes and amendments reserved |
