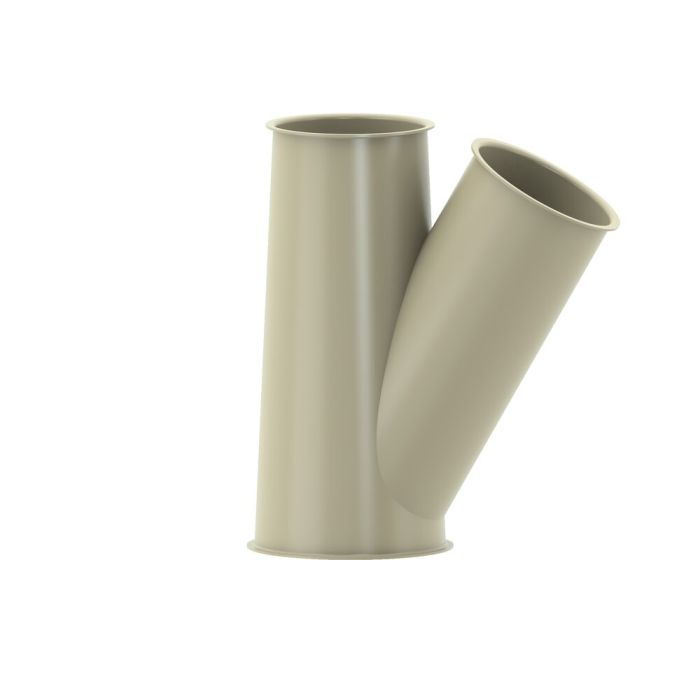

conical fork piece 30°, diam. 150/120/120x2 mm
KMH item number
1521033
steel DC01, powder coated (RAL 7032)
Availability
conical fork piece 30°, diam. 150/120/120x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 340 mm |
| dimensions b | 280 mm |
| dimensions c | 25 mm |
| dimensions dlw | 149 mm |
| dimensions dlw1 | 119 mm |
| dimensions dlw2 | 119 mm |
| dimensions e | 324 mm |
| dimensions f | 17 mm |
| coating | powder coated |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 120 |
| material | DC01 |
| nominal width | 150,120 |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 3,3200 |
| Remark | mistakes and amendments reserved |
