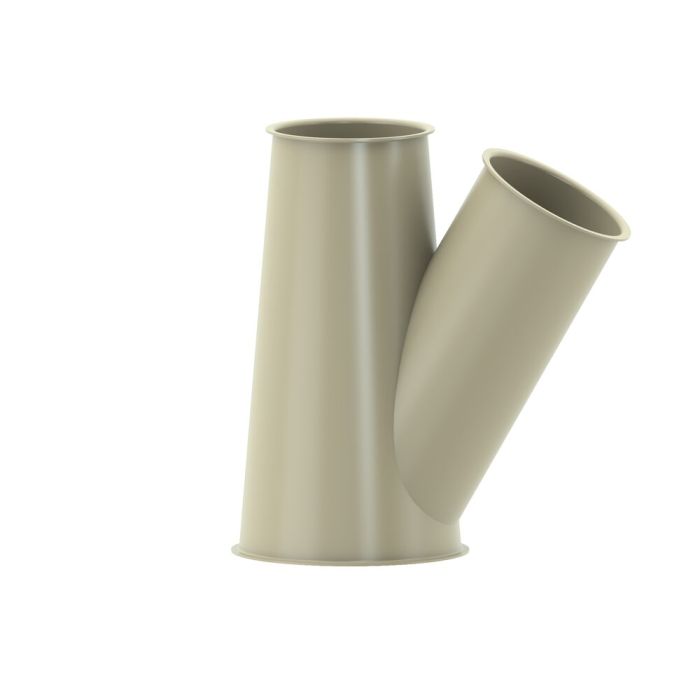

conical fork piece 30°, diam. 175/120/120x2 mm
KMH item number
1721035e-1
steel DC01, powder coated (RAL color), with earthing lugs
Availability
conical fork piece 30°, diam. 175/120/120x2 mm, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 340 mm |
| dimensions b | 275 mm |
| dimensions c | 25 mm |
| dimensions dlw | 174 mm |
| dimensions dlw1 | 119 mm |
| dimensions dlw2 | 119 mm |
| dimensions e | 342 mm |
| dimensions f | –3 mm |
| coating | powder coated (RAL) |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 120 |
| material | DC01 |
| nominal width | 175,120 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 3,4000 |
| Remark | mistakes and amendments reserved |
