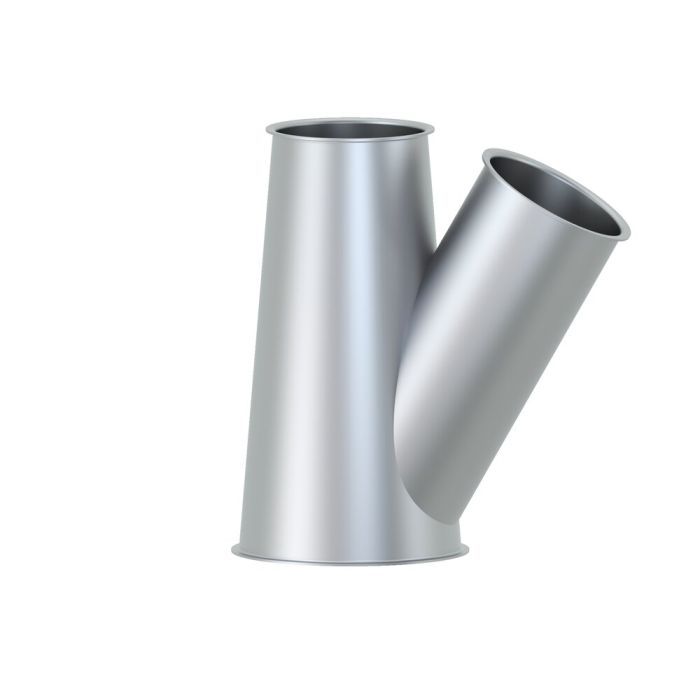

conical fork piece 30°, diam. 175/120/120x2 mm
KMH item number
1727035e
stainless steel 1.4571, blasted, with earthing lugs
Availability
conical fork piece 30°, diam. 175/120/120x2 mm, stainless steel 1.4571, blasted, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 340 mm |
| dimensions b | 275 mm |
| dimensions c | 25 mm |
| dimensions dlw | 174 mm |
| dimensions dlw1 | 119 mm |
| dimensions dlw2 | 119 mm |
| dimensions e | 342 mm |
| dimensions f | –3 mm |
| coating | blasted |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 120 |
| material | 1.4571 |
| nominal width | 175,120 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 29 80 |
| weight in kg | 3,4000 |
| Remark | mistakes and amendments reserved |
