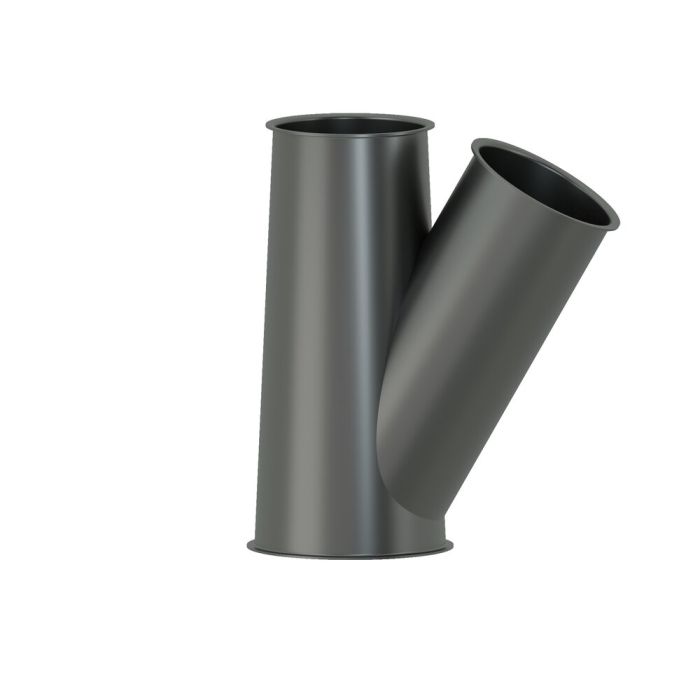

conical fork piece 30°, diam. 175/150/120x2 mm
KMH item number
1720033
steel DC01, no coating
Availability
conical fork piece 30°, diam. 175/150/120x2 mm, steel DC01, no coating
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 340 mm |
| dimensions b | 280 mm |
| dimensions c | 25 mm |
| dimensions dlw | 174 mm |
| dimensions dlw1 | 149 mm |
| dimensions dlw2 | 119 mm |
| dimensions e | 349 mm |
| dimensions f | –5 mm |
| coating | none |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 120 |
| material | DC01 |
| nominal width | 175,150 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 3,7900 |
| Remark | mistakes and amendments reserved |
