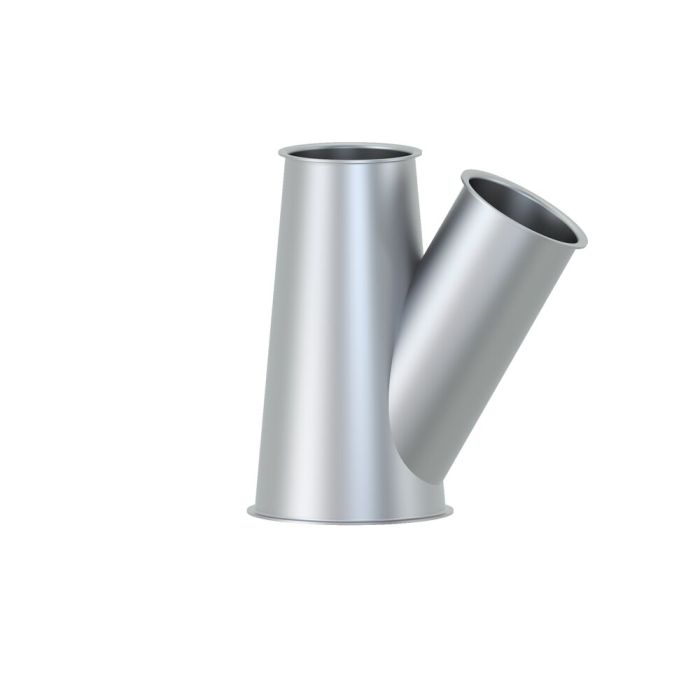

conical fork piece 30°, diam. 175/150/150x1,5 mm
KMH item number
1713034e
stainless steel 1.4301, blasted, with earthing lugs
Availability
conical fork piece 30°, diam. 175/150/150x1,5 mm, stainless steel 1.4301, blasted, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 410 mm |
| dimensions b | 330 mm |
| dimensions c | 35 mm |
| dimensions dlw | 174 mm |
| dimensions dlw1 | 149 mm |
| dimensions dlw2 | 149 mm |
| dimensions e | 373 mm |
| dimensions f | 35 mm |
| coating | blasted |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 150 |
| material | 1.4301 |
| nominal width | 175,150 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 29 80 |
| weight in kg | 3,5600 |
| Remark | mistakes and amendments reserved |
