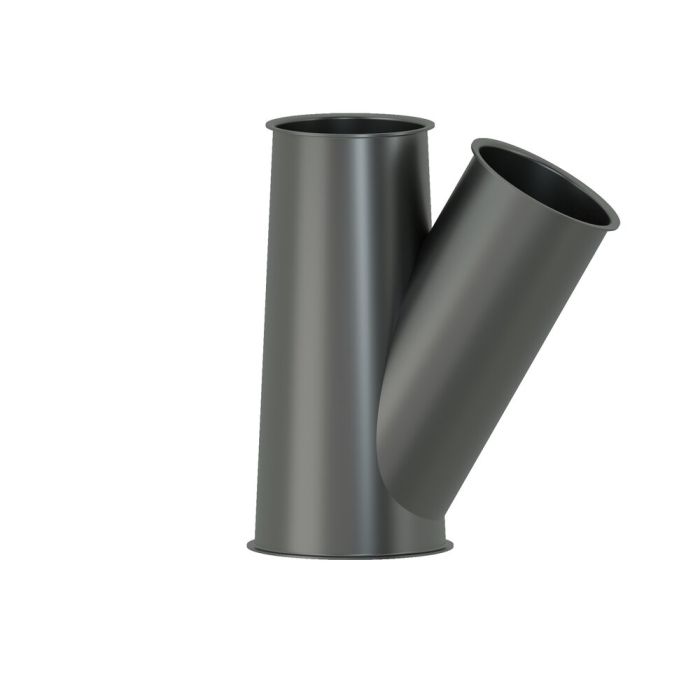

conical fork piece 30°, diam. 200/175/100x1,5 mm
KMH item number
2010033e
steel DC01, no coating, with earthing lugs
Availability
conical fork piece 30°, diam. 200/175/100x1,5 mm, steel DC01, no coating, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 290 mm |
| dimensions b | 235 mm |
| dimensions c | 25 mm |
| dimensions dlw | 199 mm |
| dimensions dlw1 | 174 mm |
| dimensions dlw2 | 99 mm |
| dimensions e | 346 mm |
| dimensions f | –46 mm |
| coating | none |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 100 |
| material | DC01 |
| nominal width | 200,175 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 2,6200 |
| Remark | mistakes and amendments reserved |
