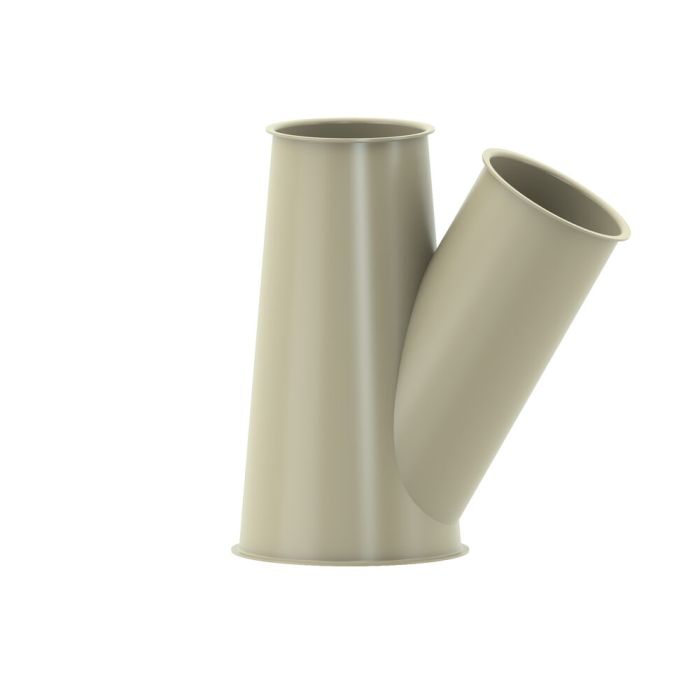

conical fork piece 30°, diam. 200/175/150x2 mm
KMH item number
2021035e
steel DC01, powder coated (RAL 7032), with earthing lugs
Availability
conical fork piece 30°, diam. 200/175/150x2 mm, steel DC01, powder coated inside and outside (RAL 7032), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 410 mm |
| dimensions b | 330 mm |
| dimensions c | 35 mm |
| dimensions dlw | 199 mm |
| dimensions dlw1 | 174 mm |
| dimensions dlw2 | 149 mm |
| dimensions e | 398 mm |
| dimensions f | 14 mm |
| coating | powder coated |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 150 |
| material | DC01 |
| nominal width | 200,175 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 4,8800 |
| Remark | mistakes and amendments reserved |
