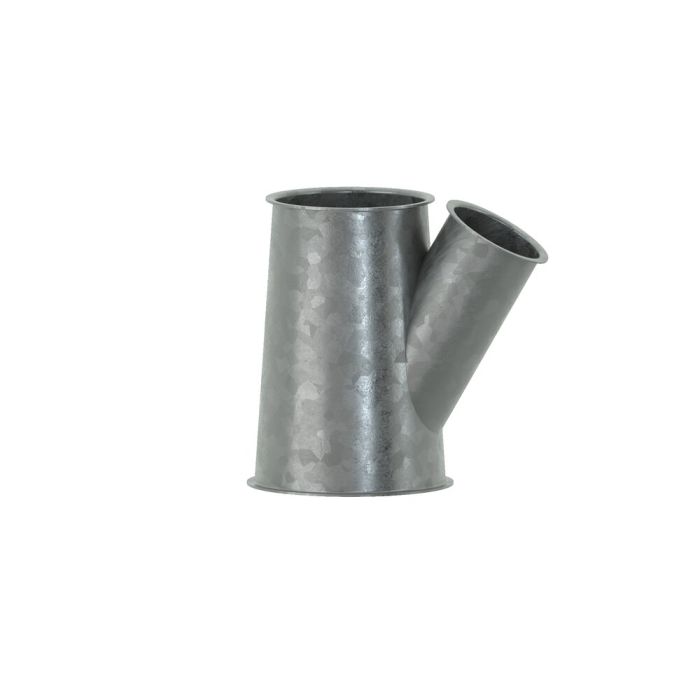

conical fork piece 30°, diam. 224/150/150x1,5 mm
KMH item number
2212031
steel DC01, galvanized
Availability
conical fork piece 30°, diam. 224/150/150x1,5 mm, steel DC01, galvanized
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 410 mm |
| dimensions b | 340 mm |
| dimensions c | 35 mm |
| dimensions dlw | 219 mm |
| dimensions dlw1 | 149 mm |
| dimensions dlw2 | 149 mm |
| dimensions e | 424 mm |
| dimensions f | 0 mm |
| coating | galvanized |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 150 |
| material | DC01 |
| nominal width | 224,150 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 3,8300 |
| Remark | mistakes and amendments reserved |
