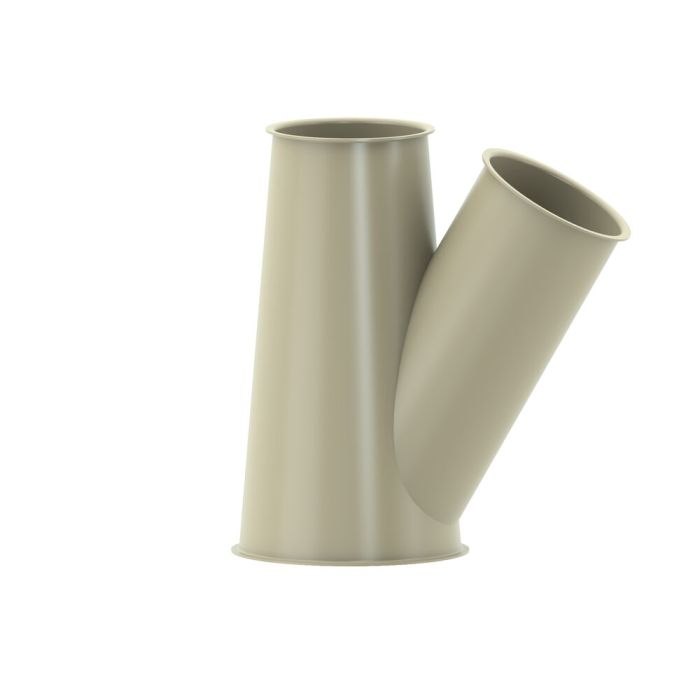

conical fork piece 30°, diam. 250/175/175x1,5 mm
KMH item number
2511035
steel DC01, powder coated (RAL 7032)
Availability
conical fork piece 30°, diam. 250/175/175x1,5 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 450 mm |
| dimensions b | 360 mm |
| dimensions c | 35 mm |
| dimensions dlw | 249 mm |
| dimensions dlw1 | 174 mm |
| dimensions dlw2 | 174 mm |
| dimensions e | 453 mm |
| dimensions f | –1 mm |
| coating | powder coated |
| grounding lug | no |
| degree | 30 ° |
| nominal size branch | 175 |
| material | DC01 |
| nominal width | 250,175 |
| material thickness | 1,5 mm |
| conductivity | no |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 4,8000 |
| Remark | mistakes and amendments reserved |
