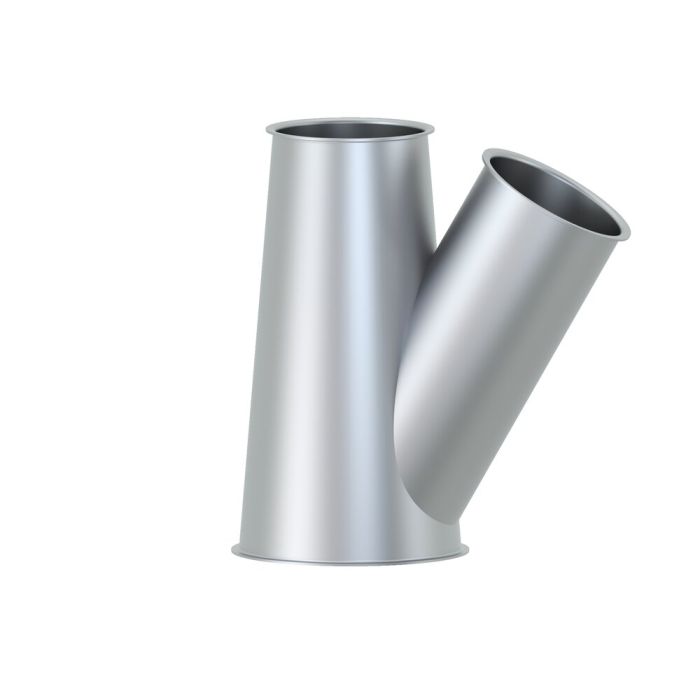

conical fork piece 30°, diam. 250/175/175x1,5 mm
KMH item number
2513035e
stainless steel 1.4301, blasted, with earthing lugs
Availability
conical fork piece 30°, diam. 250/175/175x1,5 mm, stainless steel 1.4301, blasted, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 450 mm |
| dimensions b | 360 mm |
| dimensions c | 35 mm |
| dimensions dlw | 249 mm |
| dimensions dlw1 | 174 mm |
| dimensions dlw2 | 174 mm |
| dimensions e | 453 mm |
| dimensions f | –1 mm |
| coating | blasted |
| grounding lug | yes |
| degree | 30 ° |
| nominal size branch | 175 |
| material | 1.4301 |
| nominal width | 250,175 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 29 80 |
| weight in kg | 4,8000 |
| Remark | mistakes and amendments reserved |
