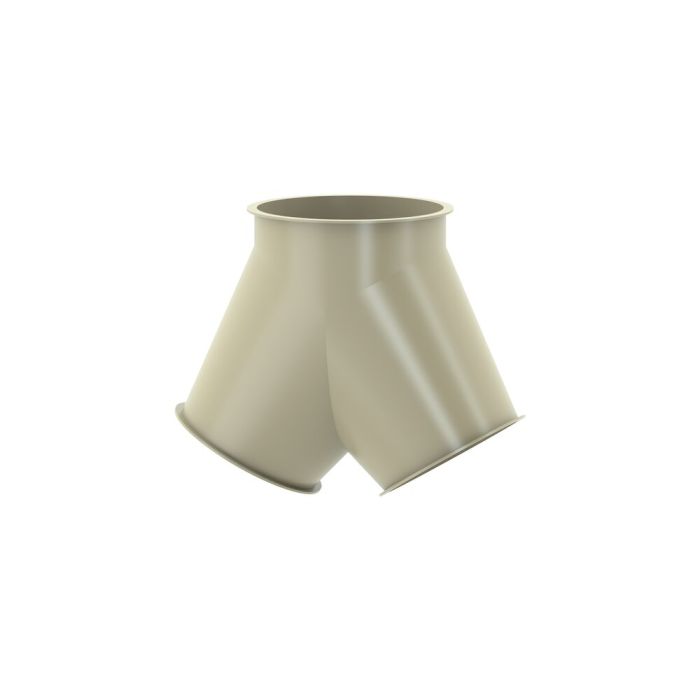

conical Y-piece 60°, diam. 150/120/120x1,5 mm
KMH item number
1511038e-1
steel DC01, powder coated (RAL color), with earthing lugs
Availability
conical Y-piece 60°, diam. 150/120/120x1,5 mm, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 170 mm |
| dimensions b | 50 mm |
| dimensions dlw | 149 mm |
| dimensions dlw1 | 119 mm |
| coating | powder coated (RAL) |
| grounding lug | yes |
| degree | 60 ° |
| nominal size branch | 120 |
| material | DC01 |
| nominal width | 150,120 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 1,5900 |
| Remark | mistakes and amendments reserved |
