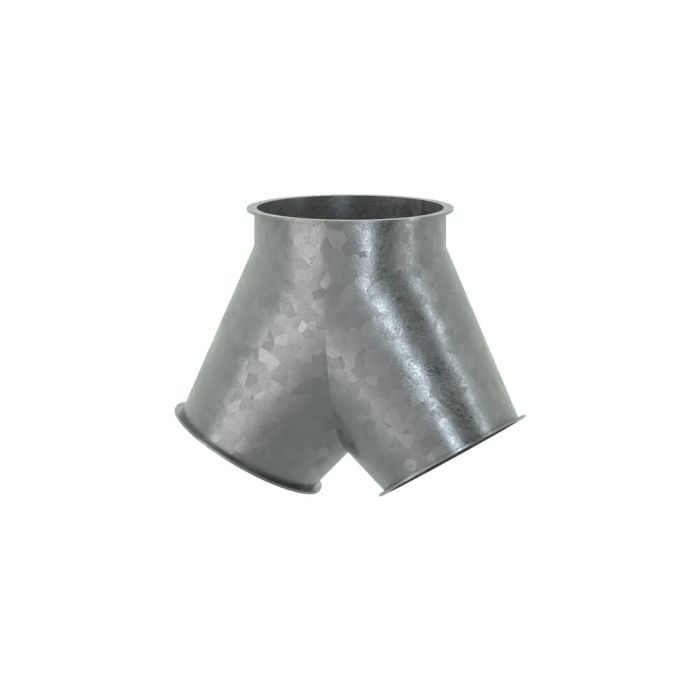

conical Y-piece 60°, diam. 224/150/150x3 mm
KMH item number
2232038e
steel DC01, galvanized, with earthing lugs
Availability
conical Y-piece 60°, diam. 224/150/150x3 mm, steel DC01, galvanized, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 220 mm |
| dimensions b | 60 mm |
| dimensions dlw | 219 mm |
| dimensions dlw1 | 149 mm |
| coating | galvanized |
| grounding lug | yes |
| degree | 60 ° |
| nominal size branch | 150 |
| material | DC01 |
| nominal width | 224,150 |
| material thickness | 3 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 5,3000 |
| Remark | mistakes and amendments reserved |
