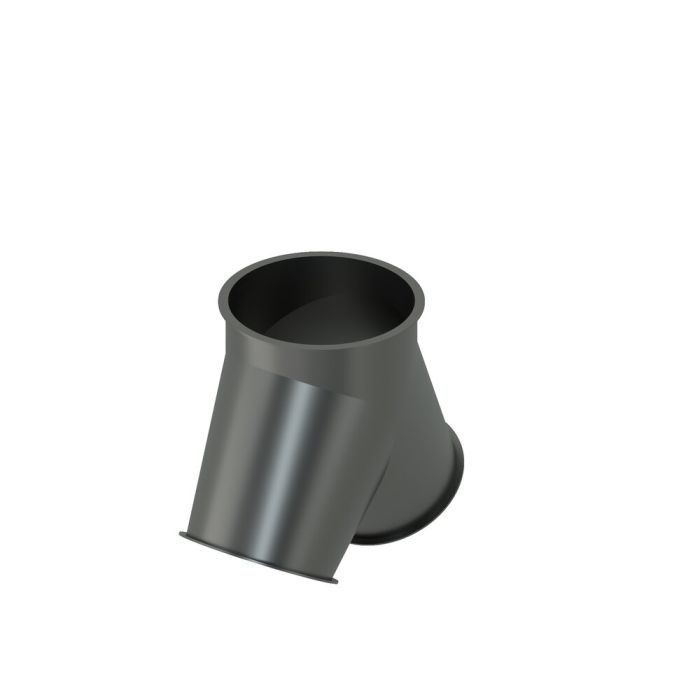

conical Y-piece 60°, diam. 300/224/224x1,5 mm
KMH item number
3010138e
steel DC01, no coating, with earthing lugs
Availability
conical Y-piece 60°, diam. 300/224/224x1,5 mm, steel DC01, no coating, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 300 mm |
| dimensions b | 70 mm |
| dimensions dlw | 299 mm |
| dimensions dlw1 | 219 mm |
| coating | none |
| grounding lug | yes |
| degree | 60 ° |
| nominal size branch | 224 |
| material | DC01 |
| nominal width | 300 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 4,6100 |
| Remark | mistakes and amendments reserved |
