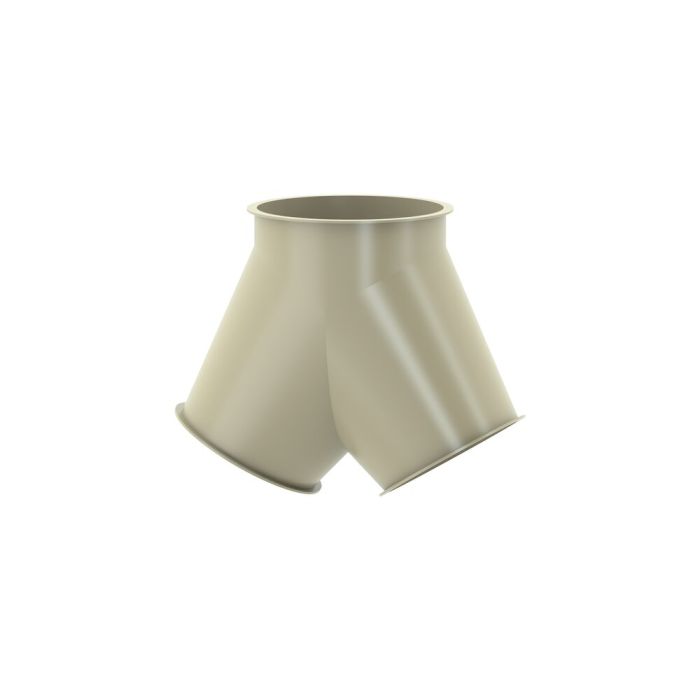

conical Y-piece 60°, diam. 350/250/250x3 mm
KMH item number
3531038e
steel DC01, powder coated (RAL 7032), with earthing lugs
Availability
conical Y-piece 60°, diam. 350/250/250x3 mm, steel DC01, powder coated inside and outside (RAL 7032), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 300 mm |
| dimensions b | 70 mm |
| dimensions dlw | 349 mm |
| dimensions dlw1 | 249 mm |
| coating | powder coated |
| grounding lug | yes |
| degree | 60 ° |
| nominal size branch | 250 |
| material | DC01 |
| nominal width | 350,250 |
| material thickness | 3 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 10,8000 |
| Remark | mistakes and amendments reserved |
