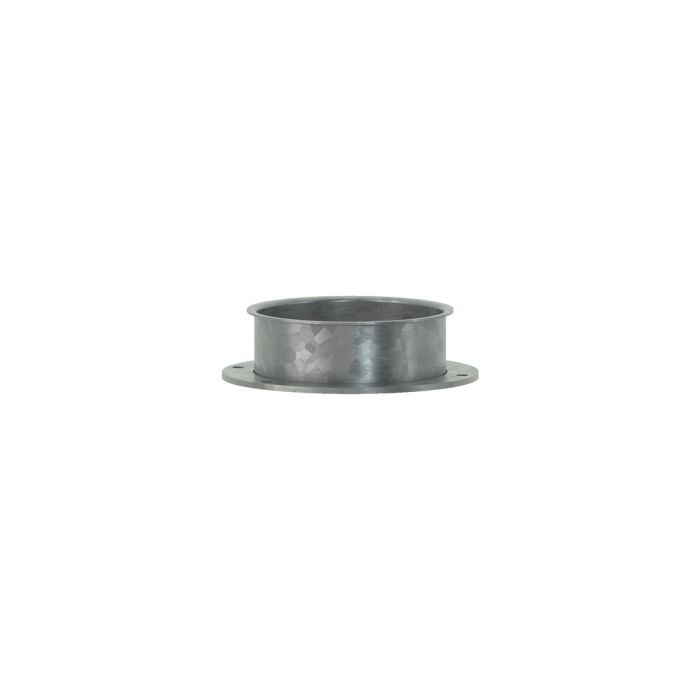

connecting piece, diam. 175x3 mm
KMH item number
1732013e
steel DC01, galvanized, with earthing lugs
Availability
connecting piece, diam. 175x3 mm, steel DC01, galvanized, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 55 mm |
| dimensions b | 5 mm |
| dimensions c | 25 mm |
| dimensions dlw | 174 mm |
| dimensions dn | 175 mm |
| dimensions e | 212 mm |
| dimensions f | 9,5 mm |
| dimensions g | 6 |
| coating | galvanized |
| grounding lug | yes |
| material | DC01 |
| nominal width | 175 |
| material thickness | 3 mm |
| conductivity | yes |
| Commodity statistical number | 7306 30 80 |
| weight in kg | 1,1900 |
| Remark | mistakes and amendments reserved |
