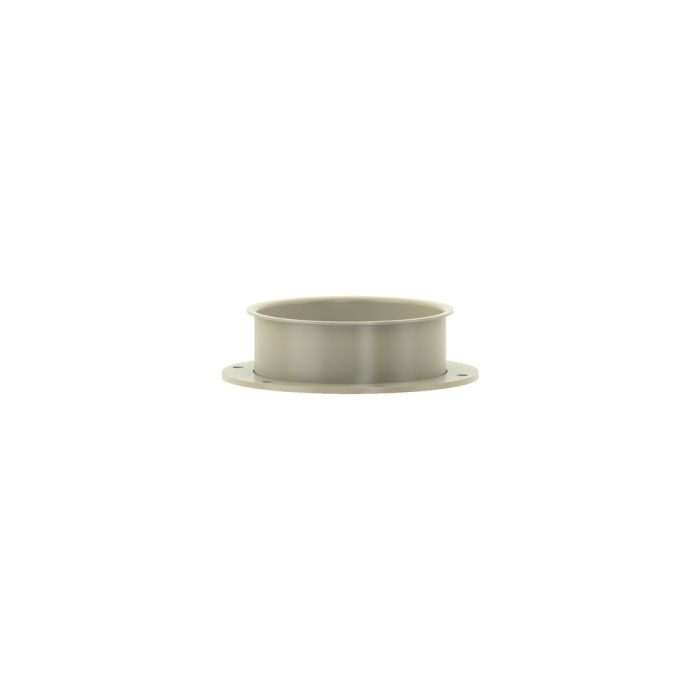

connecting piece, diam. 224x2 mm
KMH item number
2221013
steel DC01, powder coated (RAL 7032)
Availability
connecting piece, diam. 224x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 55 mm |
| dimensions b | 5 mm |
| dimensions c | 25 mm |
| dimensions dlw | 219 mm |
| dimensions dn | 224 mm |
| dimensions e | 257 mm |
| dimensions f | 9,5 mm |
| dimensions g | 6 |
| coating | powder coated |
| grounding lug | no |
| material | DC01 |
| nominal width | 224 |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 7306 30 80 |
| weight in kg | 1,2400 |
| Remark | mistakes and amendments reserved |
