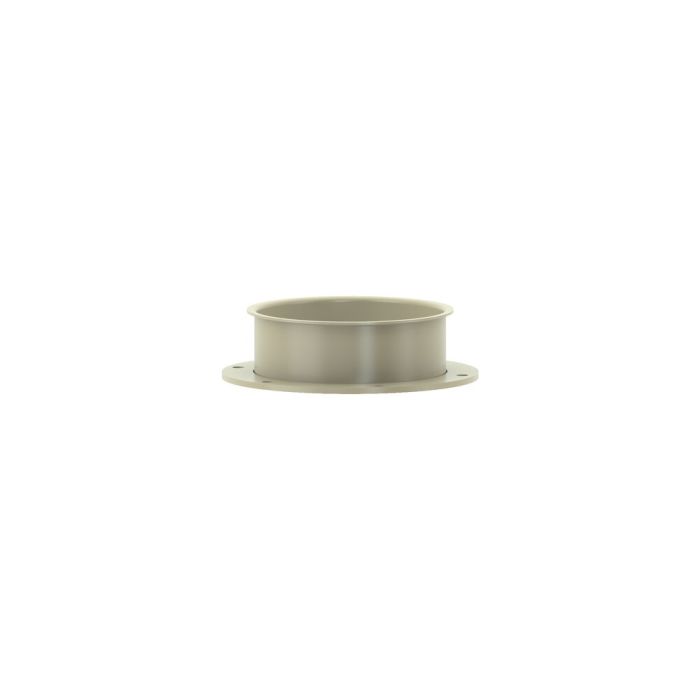

connecting piece, diam. 560x3 mm
KMH item number
5631013e-1
steel DC01, powder coated (RAL color), with earthing lugs
Availability
connecting piece, diam. 560x3 mm, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 55 mm |
| dimensions b | 5 mm |
| dimensions c | 35 mm |
| dimensions dlw | 558 mm |
| dimensions dn | 560 mm |
| dimensions e | 600 mm |
| dimensions f | 9,5 mm |
| dimensions g | 12 |
| coating | powder coated (RAL) |
| grounding lug | yes |
| material | DC01 |
| nominal width | 560 |
| material thickness | 3 mm |
| conductivity | yes |
| Commodity statistical number | 7305 31 00 |
| weight in kg | 4,3900 |
| Remark | mistakes and amendments reserved |
