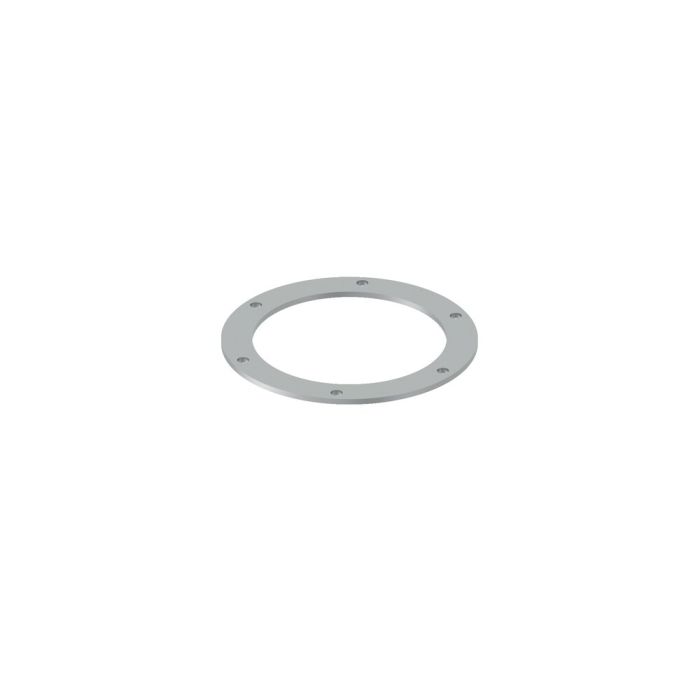

flange, diam. 175x6 mm
KMH item number
01763301
similar T2 (DIN 24154), stainless steel 1.4301, blasted
Availability
flange, diam. 175x6 mm, similar T2 (DIN 24154), stainless steel 1.4301, pickled and passivated
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions b | 6 mm |
| dimensions c | 35 mm |
| dimensions dlw | 182 mm |
| dimensions dn | 175 mm |
| dimensions e | 219 mm |
| dimensions f | 11,5 mm |
| dimensions g | 8 |
| coating | blasted |
| material | 1.4301 |
| nominal width | 175 |
| material thickness | 6 mm |
| flange | Flansch T2 |
| Commodity statistical number | 7307 21 00 |
| Remark | mistakes and amendments reserved |
