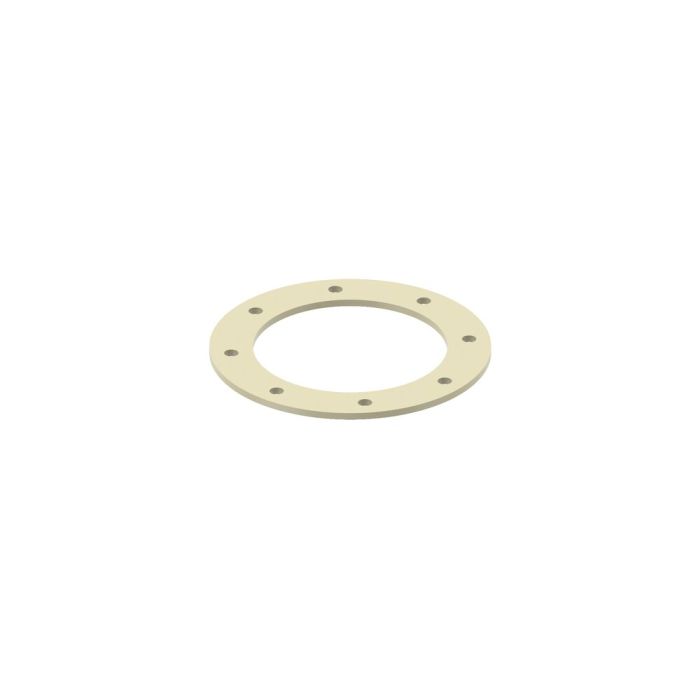

flange, diam. 250x6 mm
KMH item number
02561301
similar T2 (DIN 24154), steel DC01, powder coated (RAL 7032)
Availability
flange, diam. 250x6 mm, similar T2 (DIN 24154), steel DC01, powder coated (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions b | 6 mm |
| dimensions c | 35 mm |
| dimensions dlw | 254 mm |
| dimensions dn | 250 mm |
| dimensions e | 292 mm |
| dimensions f | 11,5 mm |
| dimensions g | 8 |
| coating | powder coated |
| material | DC01 |
| nominal width | 250 |
| material thickness | 6 mm |
| flange | Flansch T2 |
| Commodity statistical number | 7307 91 00 |
| Remark | mistakes and amendments reserved |
