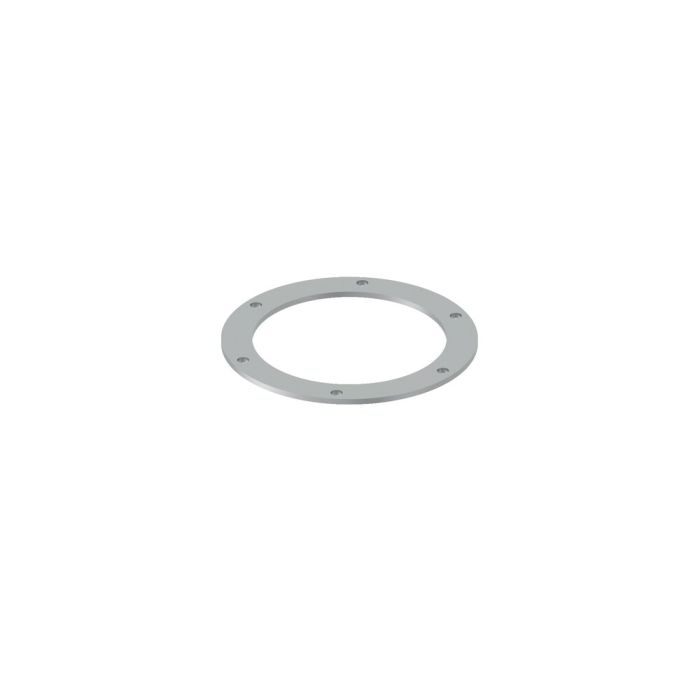

flange, diam. 300x8 mm

KMH item number
03087301
Wish List Compare
similar T2 (DIN 24154), stainless steel 1.4571, blasted
Your item number:

Not specified

Maximum 255 characters

Availability

Please log in for further information.

No availability information for this article.

Please contact your personal contact for delivery time information.

Detailed information on available quantities on request at
Tel. +49 (0) 42 41 9390 0

Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

flange, diam. 300x8 mm, similar T2 (DIN 24154), stainless steel 1.4571, pickled and passivated
Technical data
Remark measurements for 2 mm piping
dimensions b 8 mm
dimensions c 40 mm
dimensions dlw 305 mm
dimensions dn 300 mm
dimensions e 349 mm
dimensions f 11,5 mm
dimensions g 8
coating blasted
material 1.4571
nominal width 300
material thickness 8 mm
flange Flansch T2
Commodity statistical number 7307 21 00
Remark mistakes and amendments reserved
