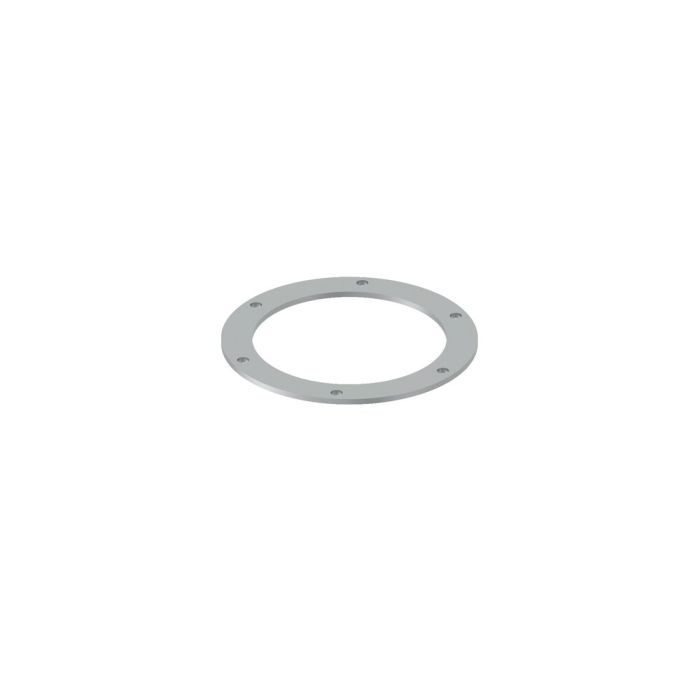

flange, diam. 450x5 mm
KMH item number
04513201
similar R1-K (DIN 24154), stainless steel 1.4301, blasted
Availability
flange, diam. 450x5 mm, similar R1-K (DIN 24154), stainless steel 1.4301, pickled and passivated
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions b | 5 mm |
| dimensions c | 30 mm |
| dimensions dlw | 456 mm |
| dimensions dn | 450 mm |
| dimensions e | 488 mm |
| dimensions f | 9,5 mm |
| dimensions g | 8 |
| coating | blasted |
| grounding lug | no |
| material | 1.4301 |
| nominal width | 450 |
| material thickness | 5 mm |
| flange | Flansch R1 |
| conductivity | yes |
| Commodity statistical number | 7307 21 00 |
| weight in kg | 1,4300 |
| Remark | mistakes and amendments reserved |
