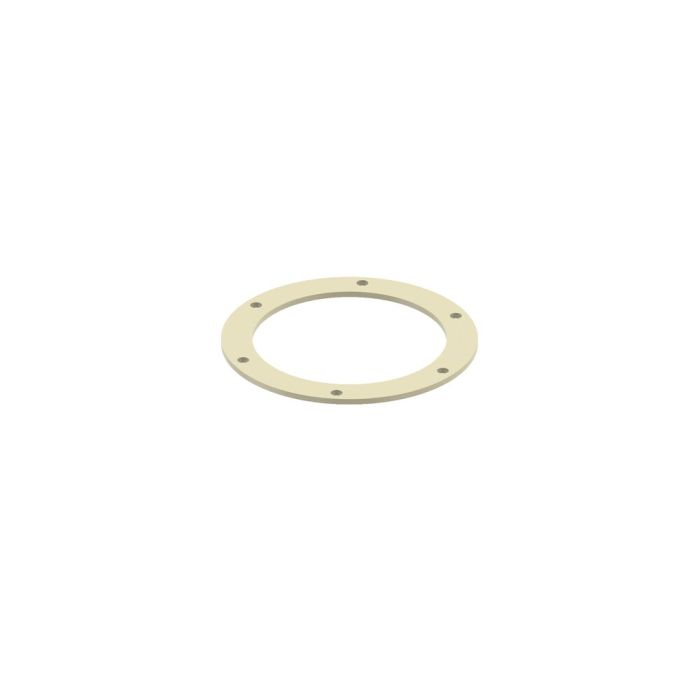

flange for insertible pipe, diam. 100/98
KMH item number
z1002974-1
similar T2 (DIN 24154), steel DC01, powder coated (RAL)
Availability
flange for insertible pipe, diam. 100/98, similar T2 (DIN 24154), steel DC01, powder coated (RAL)
| dimensions b | 6 mm |
|---|---|
| dimensions c | 30 mm |
| dimensions dlw | 106 mm |
| dimensions dn | 100 mm |
| dimensions e | 139 mm |
| dimensions f | 9,5 mm |
| dimensions g | 4 mm |
| coating | powder coated (RAL) |
| material | DC01 |
| nominal width | 100 |
| material thickness | 6 mm |
| flange | Flansch T2 |
| Commodity statistical number | 7307 91 00 |
