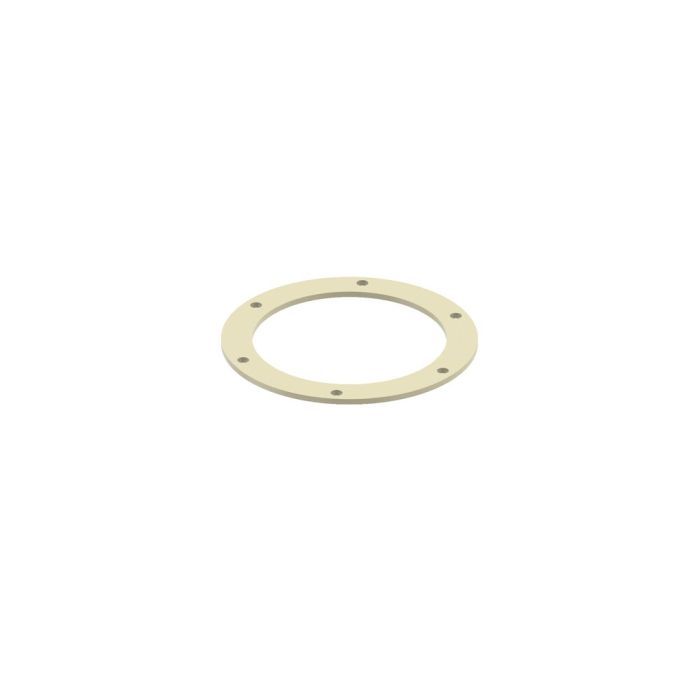

flange for insertible pipe, diam. 224/218
KMH item number
z1077968
similar T2 (DIN 24154), steel DC01, powder coated (RAL 7032)
Availability
flange for insertible pipe, diam. 224/218, similar T2 (DIN 24154), steel DC01, powder coated (RAL 7032)
| dimensions b | 6 mm |
|---|---|
| dimensions c | 35 mm |
| dimensions dlw | 225 mm |
| dimensions dn | 224 mm |
| dimensions e | 265 mm |
| dimensions f | 11,5 mm |
| dimensions g | 8 mm |
| coating | powder coated |
| material | DC01 |
| nominal width | 224 |
| material thickness | 6 mm |
| flange | Flansch T2 |
| Commodity statistical number | 7307 91 00 |
