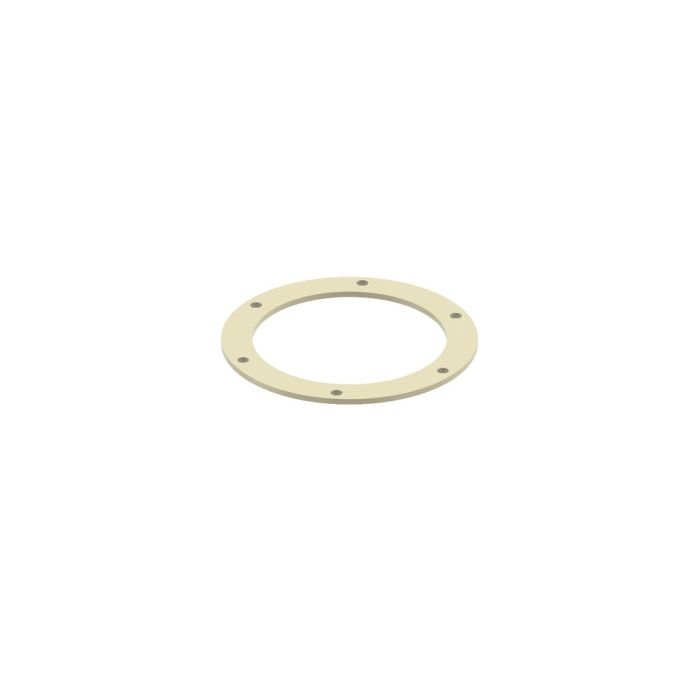

flange for insertible pipe, diam. 250/248

KMH item number
z1006213
similar T2 (DIN 24154), steel DC01, powder coated (RAL)
Your item number:

Not specified
Loading...
List price:

Maximum 255 characters

Availability

Loading...



Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

flange for insertible pipe, diam. 250/248, similar T2 (DIN 24154), steel DC01, powder coated (RAL)
Technical data
dimensions b6 mm
dimensions c35 mm
dimensions dlw254 mm
dimensions dn250 mm
dimensions e292 mm
dimensions f11,5 mm
dimensions g8 mm
coatingpowder coated (RAL)
materialDC01
nominal width250
material thickness6 mm
flangeFlansch T2
Commodity statistical number7307 91 00
