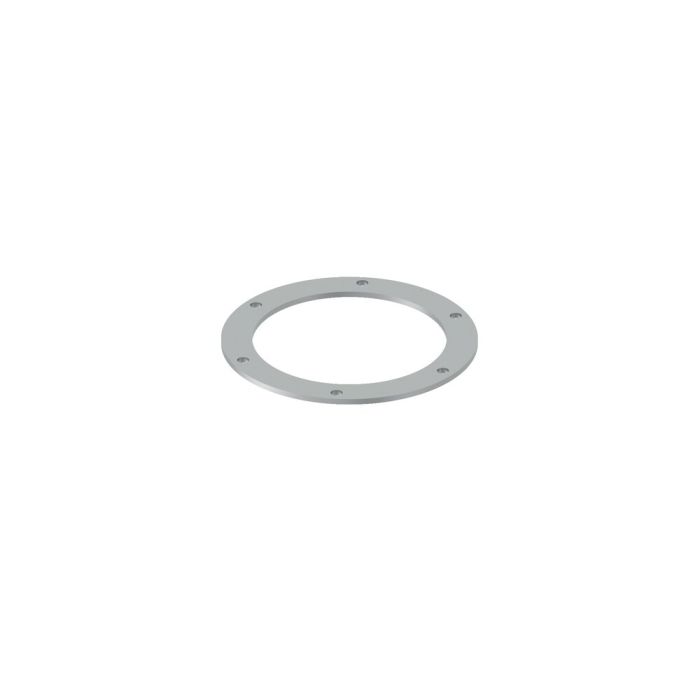

flange for insertible pipe, diam. 500/498

KMH item number
z1001783
similar T2 (DIN 24154), stainless steel 1.4301, blasted
Your item number:

Not specified
Loading...
List price:

Maximum 255 characters

Availability

Loading...



Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

flange for insertible pipe, diam. 500/498, similar T2 (DIN 24154), stainless steel 1.4301, blasted
Technical data
dimensions b8 mm
dimensions c40 mm
dimensions dlw504 mm
dimensions dn500 mm
dimensions e551 mm
dimensions f11,5 mm
dimensions g12 mm
coatingblasted
material1.4301
nominal width500
material thickness8 mm
flangeFlansch T2
Commodity statistical number7307 21 00
