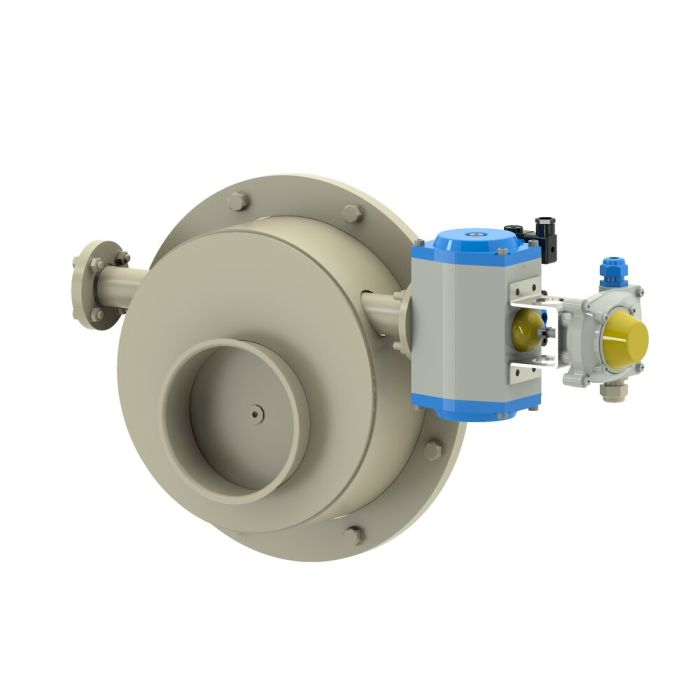

free flow valve, diam. 224x2 mm
KMH item number
2221218A1
steel DC01, powder coated (RAL 7032)
Availability
free flow valve, diam. 224x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 400 mm |
| dimensions b | 264 mm |
| dimensions c | 506 mm |
| dimensions dlw | 219 mm |
| dimensions dn | 224 mm |
| dimensions e | 26 mm |
| drive | pneumatic double-action pivot drive (230 V AC) |
| coating | powder coated |
| activity | pneumatically operated |
| flap seal | no |
| grounding lug | no |
| material | DC01 |
| nominal width | 224 |
| current | AC |
| protection class | IP67 |
| control voltage | 230 V |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 32,2000 |
| Remark | mistakes and amendments reserved |
