insertible pipe, diam. 100x1,5 mm
KMH item number
1017009e
100 mm lang, stainless steel 1.4571, blasted, with earthing lugs
Availability
insertible pipe, diam. 100x1,5 mm, 100 mm lang, stainless steel 1.4571, blasted, with earthing lugs

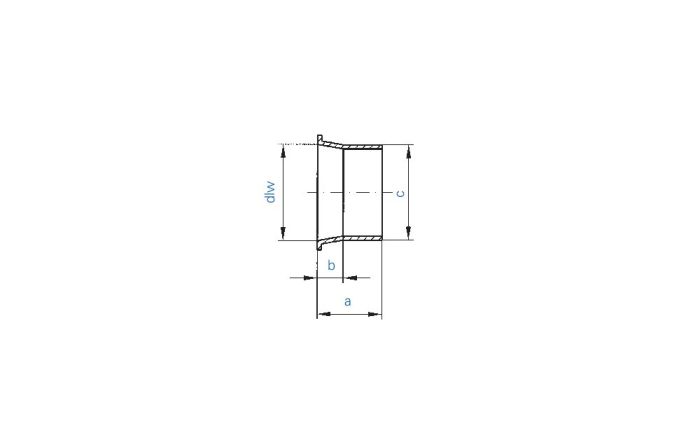

| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 100 mm |
| dimensions b | 25 mm |
| dimensions c | 96 mm |
| dimensions dlw | 99 mm |
| dimensions dn | 100 mm |
| coating | blasted |
| grounding lug | yes |
| length | 100 mm |
| material | 1.4571 |
| nominal width | 100 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7306 40 20 |
| weight in kg | 0,3700 |
| Remark | mistakes and amendments reserved |
