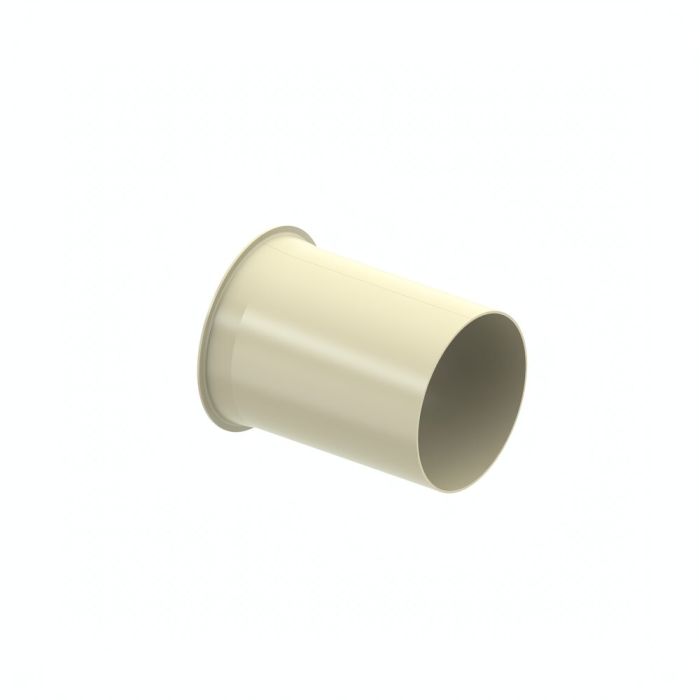

insertible pipe, diam. 150x1,5 mm
KMH item number
1511008e-1
200 mm lang, steel DC01, powder coated (RAL color), with earthing lugs
Availability
insertible pipe, diam. 150x1,5 mm, 200 mm lang, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 200 mm |
| dimensions b | 25 mm |
| dimensions c | 146 mm |
| dimensions dlw | 149 mm |
| dimensions dn | 150 mm |
| coating | powder coated (RAL) |
| grounding lug | yes |
| length | 200 mm |
| material | DC01 |
| nominal width | 150 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7306 30 77 |
| weight in kg | 1,1100 |
| Remark | mistakes and amendments reserved |
