insertible pipe, diam. 200x1,5 mm
KMH item number
2017006e
1000 mm lang, stainless steel 1.4571, blasted, with earthing lugs
Availability
insertible pipe, diam. 200x1,5 mm, 1000 mm lang, stainless steel 1.4571, blasted, with earthing lugs

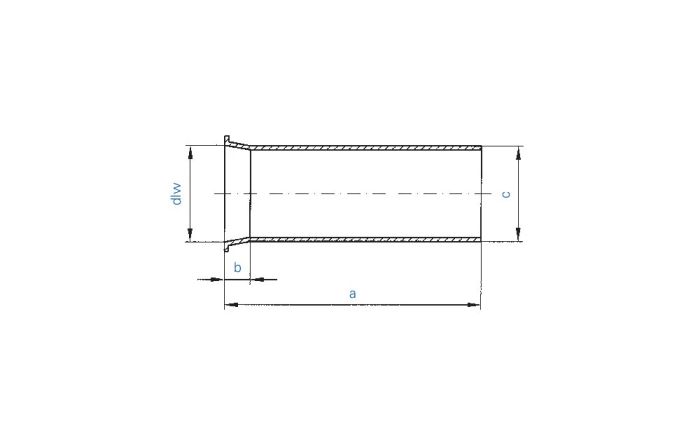

| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 991 mm |
| dimensions b | 25 mm |
| dimensions c | 195 mm |
| dimensions dlw | 199 mm |
| dimensions dn | 200 mm |
| coating | blasted |
| grounding lug | yes |
| length | 1.000 mm |
| material | 1.4571 |
| nominal width | 200 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7306 40 20 |
| weight in kg | 7,4000 |
| Remark | mistakes and amendments reserved |
