insertible pipe, diam. 400x1,5 mm
KMH item number
4011007e-1
500 mm lang, steel DC01, powder coated (RAL color), with earthing lugs
Availability
insertible pipe, diam. 400x1,5 mm, 500 mm lang, steel DC01, powder coated inside and outside (RAL color), with earthing lugs

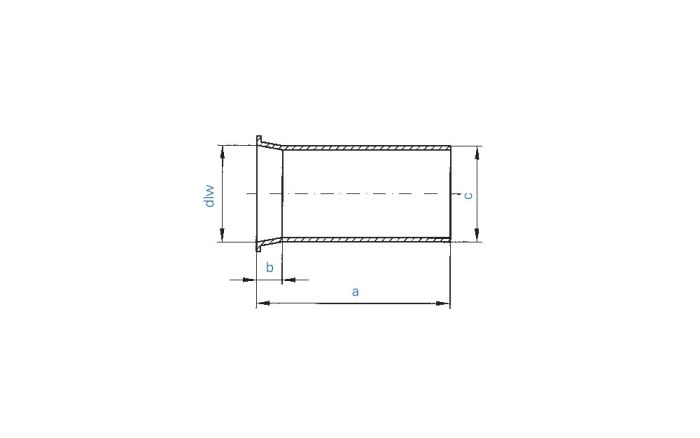

| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 493 mm |
| dimensions b | 50 mm |
| dimensions c | 394 mm |
| dimensions dlw | 398 mm |
| dimensions dn | 400 mm |
| coating | powder coated (RAL) |
| grounding lug | yes |
| length | 500 mm |
| material | DC01 |
| nominal width | 400 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7306 30 80 |
| weight in kg | 7,4000 |
| Remark | mistakes and amendments reserved |
