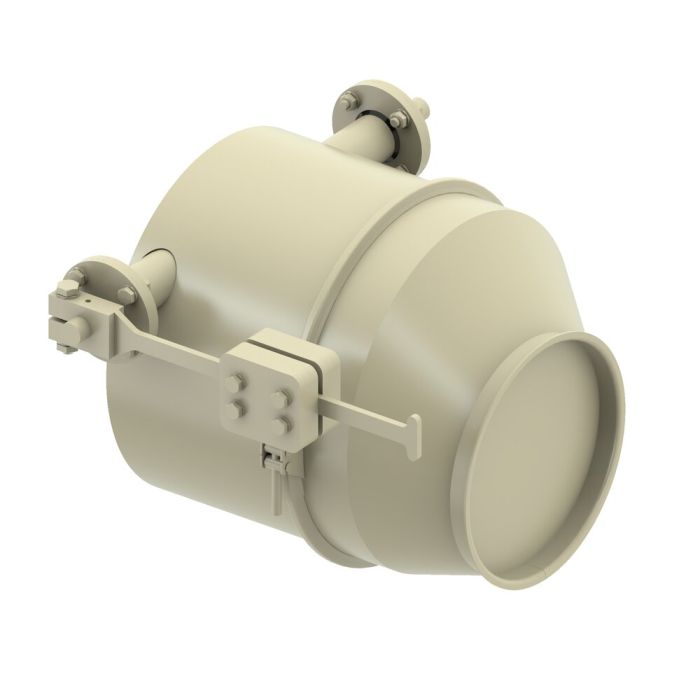

non-return valve, diam. 175x2 mm
KMH item number
1721175e-1
steel DC01, powder coated (RAL color), with earthing lugs
Availability
non-return valve, diam. 175x2 mm, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 300 mm |
| dimensions b | 150 mm |
| dimensions c | 140 mm |
| dimensions dlw | 174 mm |
| dimensions dn | 175 mm |
| dimensions e | 48 mm |
| dimensions f | 315 mm |
| dimensions g | 450 mm |
| coating | powder coated (RAL) |
| activity | manually operated |
| flap seal | no |
| grounding lug | yes |
| material | DC01 |
| nominal width | 175 |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 30 91 |
| weight in kg | 12,0000 |
| Remark | mistakes and amendments reserved |
