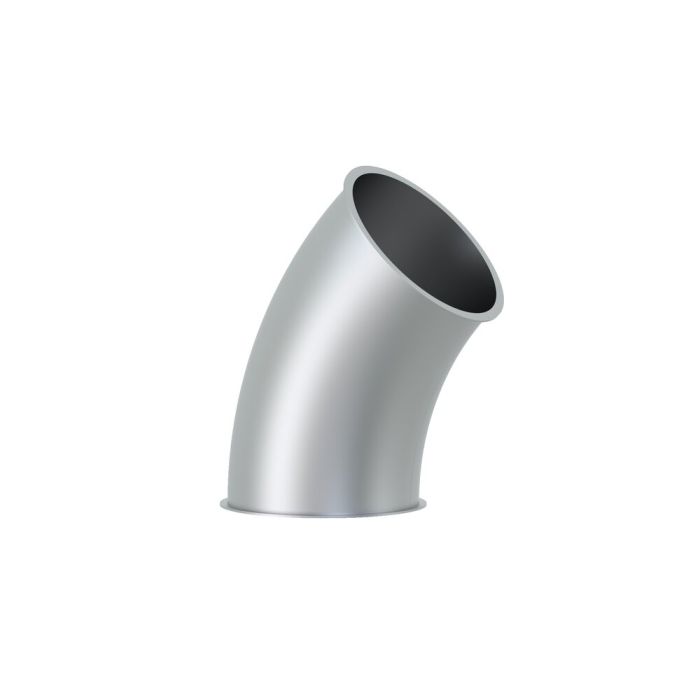

pipe bend 45° R=2D, diam. 120x2 mm
KMH item number
1227018e
stainless steel 1.4571, blasted, with earthing lugs
Availability
pipe bend 45° R=2D, diam. 120x2 mm, stainless steel 1.4571, blasted, with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions dlw | 119 mm |
| dimensions dn | 120 mm |
| dimensions r | 240 mm |
| coating | blasted |
| grounding lug | yes |
| degree | 45 ° |
| material | 1.4571 |
| nominal width | 120 |
| radius | R=2D |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 7307 29 80 |
| weight in kg | 1,2000 |
| Remark | mistakes and amendments reserved |
