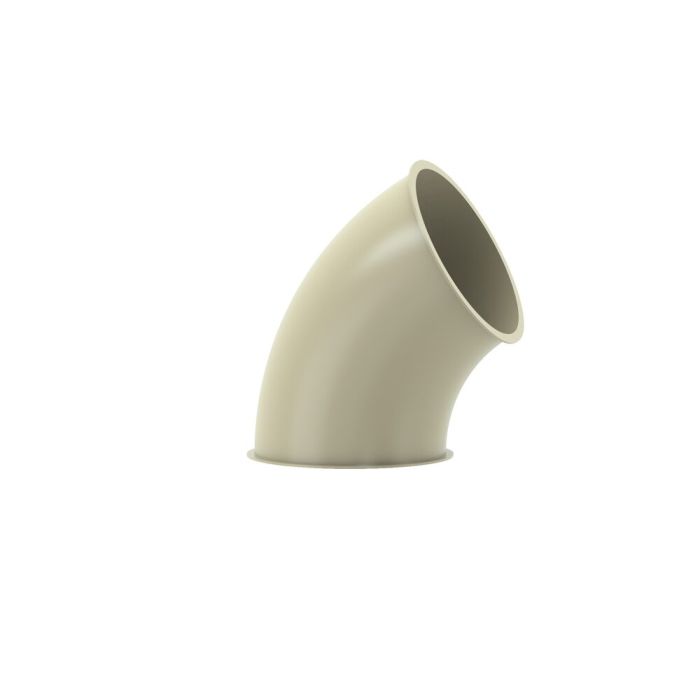

pipe bend 60°, diam. 175x3 mm

KMH item number
1731221
steel DC01, powder coated (RAL 7032)
Your item number:

Not specified
Loading...
List price:

Maximum 255 characters

Availability

Loading...



Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

pipe bend 60°, diam. 175x3 mm, steel DC01, powder coated inside and outside (RAL 7032)
Technical data
Remarkmeasurements for 2 mm piping
dimensions dlw174 mm
dimensions dn175 mm
dimensions r215 mm
coatingpowder coated
grounding lugno
degree60 °
materialDC01
nominal width175
radiusR=D
material thickness3 mm
conductivityno
Commodity statistical number7307 99 80
weight in kg2,3700
Remarkmistakes and amendments reserved
