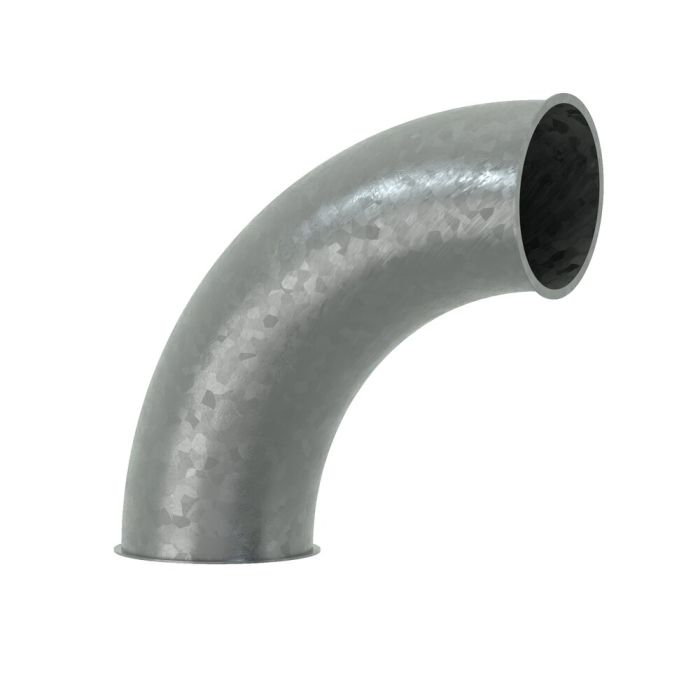

pipe bend 90° R=2D, diam. 200x1,5 mm

KMH item number
2012016
steel DC01, galvanized
Your item number:

Not specified
Loading...
List price:

Maximum 255 characters

Availability

Loading...



Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

pipe bend 90° R=2D, diam. 200x1,5 mm, steel DC01, galvanized
Technical data
Remarkmeasurements for 2 mm piping
dimensions dlw199 mm
dimensions dn200 mm
dimensions r400 mm
coatinggalvanized
grounding lugno
degree90 °
materialDC01
nominal width200
radiusR=2D
material thickness1,5 mm
conductivityyes
Commodity statistical number7307 99 80
weight in kg4,6500
Remarkmistakes and amendments reserved
