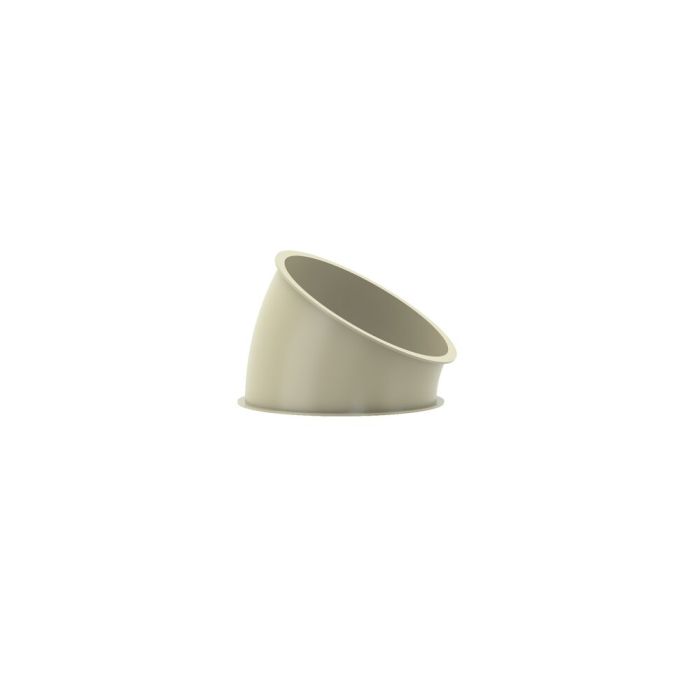

segment 30°, diam. 200x3 mm
KMH item number
2031025e
steel DC01, powder coated (RAL 7032), with earthing lugs
Availability
segment 30°, diam. 200x3 mm, steel DC01, powder coated inside and outside (RAL 7032), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions dlw | 199 mm |
| dimensions dn | 200 mm |
| dimensions r | 180 mm |
| coating | powder coated |
| grounding lug | yes |
| degree | 30 ° |
| material | DC01 |
| nominal width | 200 |
| radius | R=D |
| material thickness | 3 mm |
| conductivity | yes |
| Commodity statistical number | 7307 99 80 |
| weight in kg | 1,8000 |
| Remark | mistakes and amendments reserved |
