shut-off valve, diam. 100x2 mm
KMH item number
1022217G5-3D
steel DC01, galvanized
Availability
shut-off valve, diam. 100x2 mm, steel DC01, galvanized

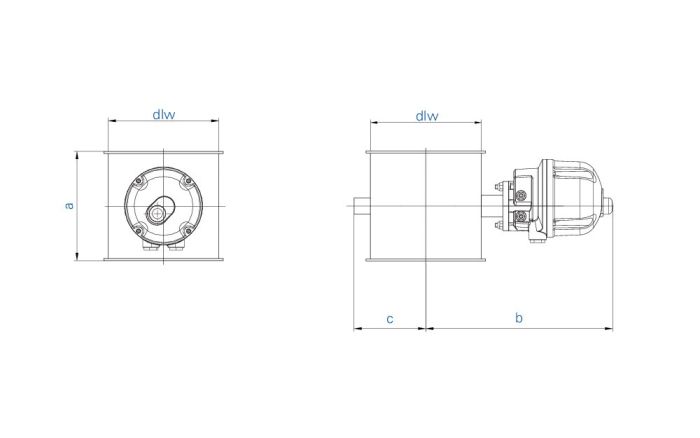

| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 100 mm |
| dimensions b | 388 mm |
| dimensions c | 71 mm |
| dimensions dlw | 99 mm |
| dimensions dn | 100 mm |
| drive | worm gear motor (400 V AC) |
| ATEX execution | ATEX zone 20 (inside) / zone 22 (outside) |
| coating | galvanized |
| activity | electrically operated |
| flap seal | no |
| grounding lug | no |
| material | DC01 |
| nominal width | 100 |
| current | AC |
| control voltage | 400 V |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 0,0000 |
| Remark | mistakes and amendments reserved |
