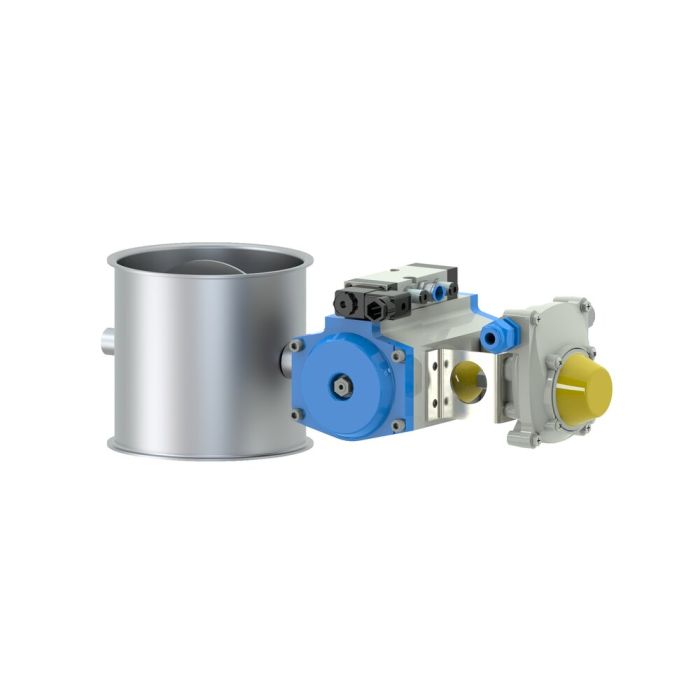

shut-off valve, diam. 175x2 mm
KMH item number
1723213A3
stainless steel 1.4301, blasted
Availability
shut-off valve, diam. 175x2 mm, stainless steel 1.4301, blasted
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 175 mm |
| dimensions b | 360 mm |
| dimensions c | 117 mm |
| dimensions dlw | 174 mm |
| dimensions dn | 175 mm |
| drive | pneumatic double-action pivot drive (24 V DC) |
| coating | blasted |
| activity | pneumatically operated |
| flap seal | no |
| grounding lug | no |
| material | 1.4301 |
| nominal width | 175 |
| current | DC |
| protection class | IP67 |
| control voltage | 24 V |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 8,7000 |
| Remark | mistakes and amendments reserved |
