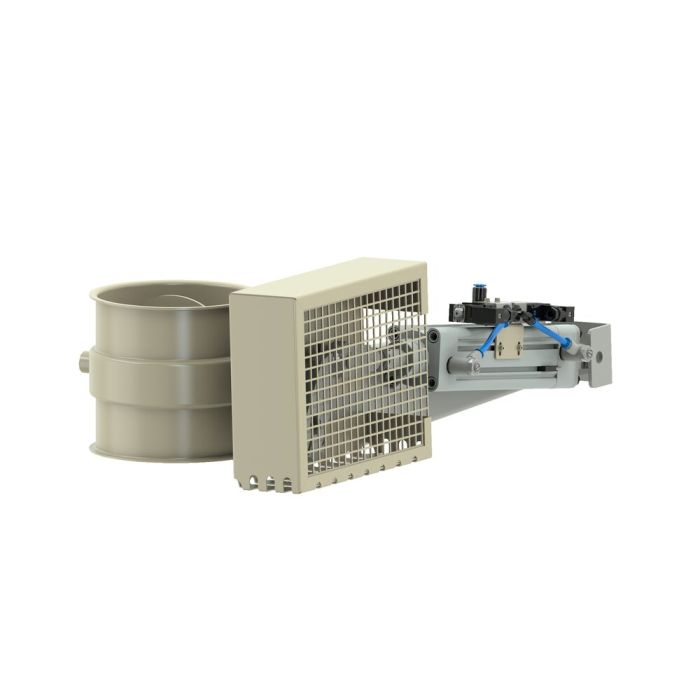

shut-off valve, diam. 80x1,5 mm
KMH item number
0821210F3-3D
steel DC01, powder coated (RAL 7032)
Availability
shut-off valve, diam. 80x1,5 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 100 mm |
| dimensions b | 204 mm |
| dimensions c | 69 mm |
| dimensions dlw | 78 mm |
| dimensions dn | 80 mm |
| dimensions e | 450 mm |
| drive | pneumatic double-action cylinder unit (24 V DC) |
| ATEX execution | ATEX zone 20 (inside) / zone 22 (outside) |
| coating | powder coated |
| activity | pneumatically operated |
| flap seal | yes |
| grounding lug | no |
| material | DC01 |
| nominal width | 80 |
| current | DC |
| protection class | IP65 |
| control voltage | 24 V |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 7,0000 |
| Remark | mistakes and amendments reserved |
