throttle valve, diam. 500x2 mm
KMH item number
5022075
steel DC01, galvanized
Availability

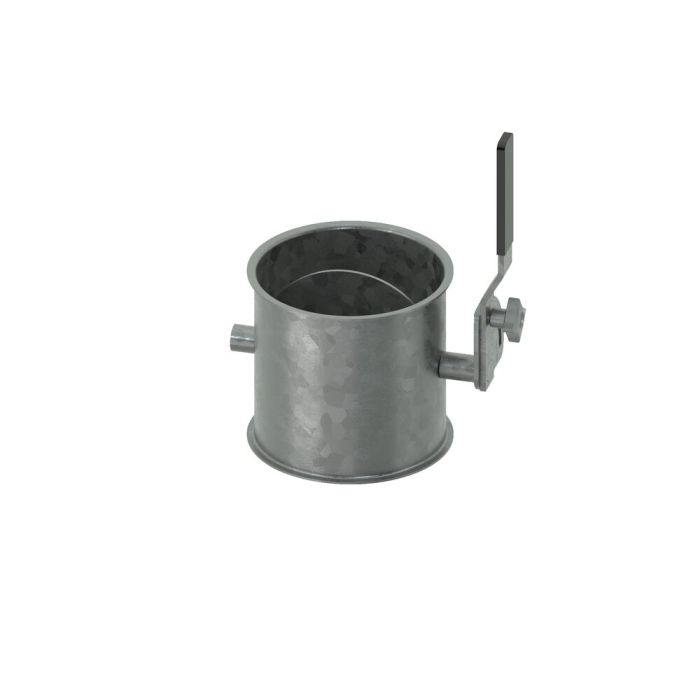

throttle valve, diam. 500x2 mm, steel DC01, galvanized
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 500 mm |
| dimensions b | 318 mm |
| dimensions c | 281 mm |
| dimensions dlw | 498 mm |
| dimensions dn | 500 mm |
| coating | galvanized |
| activity | manually operated |
| flap seal | no |
| grounding lug | no |
| material | DC01 |
| nominal width | 500 |
| maximum temperature | °C |
| minimum temperature | °C |
| maximum temperature (short-term) | °C |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 19,0000 |
| Remark | mistakes and amendments reserved |
