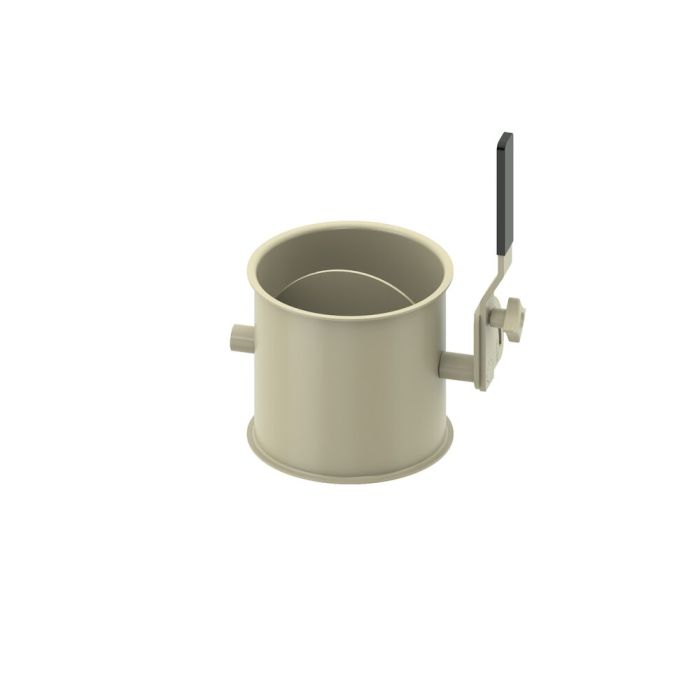

throttle valve, diam. 560x2 mm
KMH item number
5621075-1
steel DC01, powder coated (RAL color)
Availability
throttle valve, diam. 560x2 mm, steel DC01, powder coated inside and outside (RAL color)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 560 mm |
| dimensions b | 348 mm |
| dimensions c | 311 mm |
| dimensions dlw | 558 mm |
| dimensions dn | 560 mm |
| coating | powder coated (RAL) |
| activity | manually operated |
| flap seal | no |
| grounding lug | no |
| material | DC01 |
| nominal width | 560 |
| maximum temperature | °C |
| minimum temperature | °C |
| maximum temperature (short-term) | °C |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 22,7000 |
| Remark | mistakes and amendments reserved |
