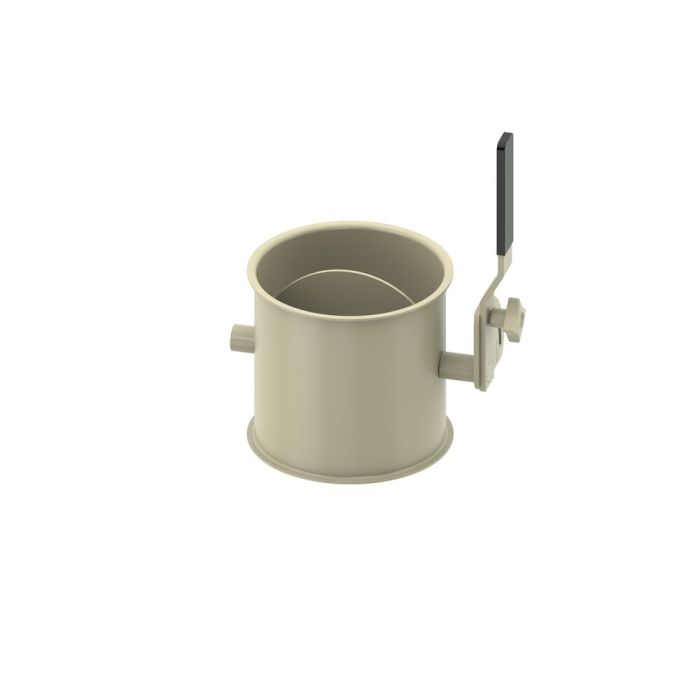

throttle valve, diam. 80x1,5 mm
KMH item number
0811075-2D
steel DC01, powder coated (RAL 7032), suitable for ATEX
Availability
throttle valve, diam. 80x1,5 mm, steel DC01, powder coated inside and outside (RAL 7032), applicable for ATEX inside zone 20, outside zone 21
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 100 mm |
| dimensions b | 97 mm |
| dimensions c | 60 mm |
| dimensions dlw | 78 mm |
| dimensions dn | 80 mm |
| ATEX execution | ATEX zone 20 (inside) / zone 21 (outside) |
| coating | powder coated |
| activity | manually operated |
| flap seal | no |
| grounding lug | no |
| material | DC01 |
| nominal width | 80 |
| maximum temperature | °C |
| minimum temperature | °C |
| maximum temperature (short-term) | °C |
| material thickness | 1,5 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 1,0000 |
| Remark | mistakes and amendments reserved |
