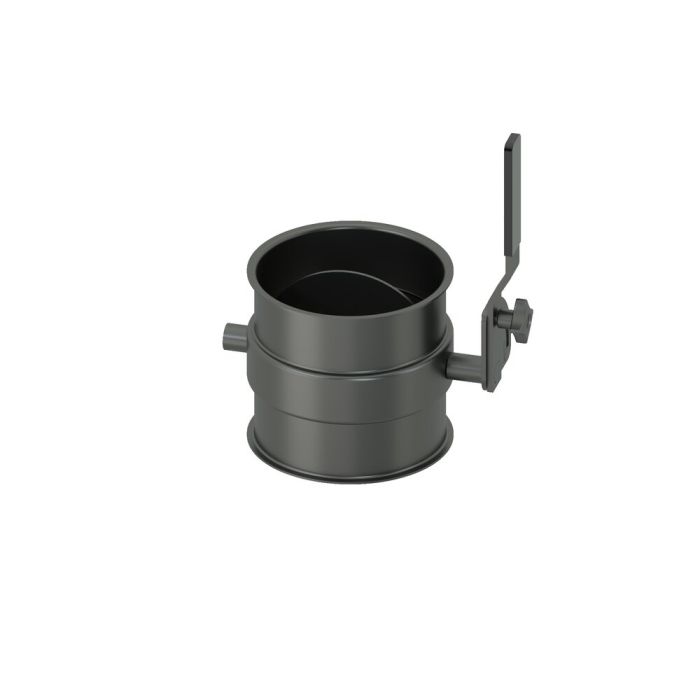

throttle valve with valve sealing Si, diam. 250x2 mm
KMH item number
2520076
steel DC01, no coating
Availability
throttle valve with valve sealing Si, diam. 250x2 mm, steel DC01, no coating
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 250 mm |
| dimensions b | 201 mm |
| dimensions c | 164 mm |
| dimensions dlw | 249 mm |
| dimensions dn | 250 mm |
| coating | none |
| activity | manually operated |
| flap seal | yes |
| grounding lug | no |
| material | DC01 |
| nominal width | 250 |
| maximum temperature | °C |
| minimum temperature | °C |
| maximum temperature (short-term) | °C |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 6,8000 |
| Remark | mistakes and amendments reserved |
