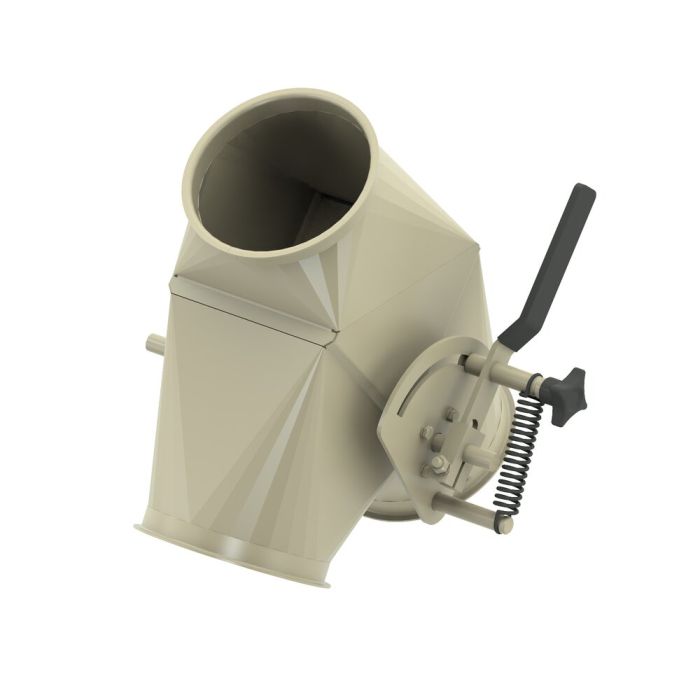

Two-way asymmetrical valve 60°, diam. 100x2 mm
KMH item number
1021201
steel DC01, powder coated (RAL 7032)
Availability
Two-way asymmetrical valve 60°, diam. 100x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 260 mm |
| dimensions b | 90 mm |
| dimensions c | 170 mm |
| dimensions dlw | 99 mm |
| dimensions dlw1 | 0 mm |
| dimensions dlw2 | 0 mm |
| dimensions dn | 100 mm |
| dimensions e | 211 mm |
| dimensions f | 143 mm |
| dimensions g | 0 mm |
| dimensions i | 0 mm |
| dimensions r | 0 mm |
| execution | square to round,asymmetrical |
| coating | powder coated |
| activity | manually operated |
| flap seal | yes |
| grounding lug | no |
| length | 0 mm |
| degree | 60 ° |
| material | DC01 |
| nominal width | 100 |
| maximum temperature | 0 °C |
| minimum temperature | 0 °C |
| maximum temperature (short-term) | 0 °C |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight | 0 kg |
| Remark | mistakes and amendments reserved |
