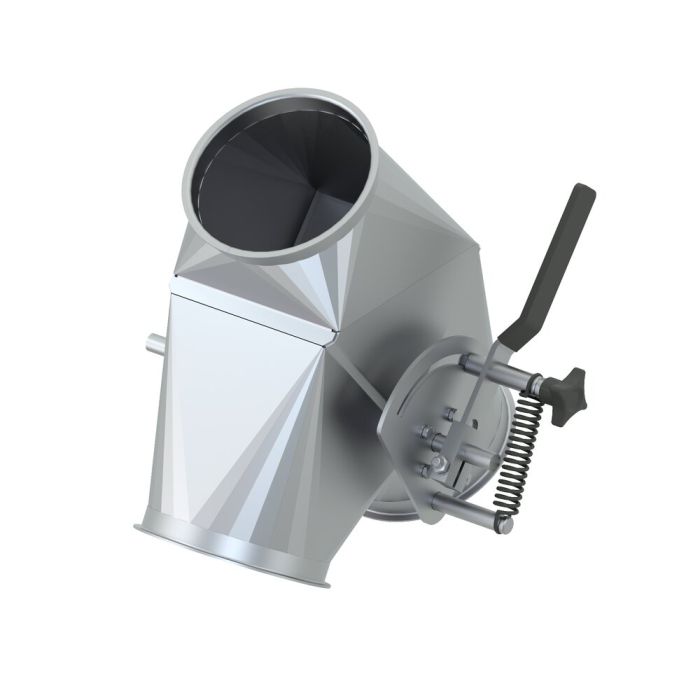

Two-way asymmetrical valve 60°, diam. 100x2 mm

KMH item number
stainless steel 1.4301, pickled and passivated
Your item number:

Not specified

Maximum 255 characters


Please log in for further information.

No availability information for this article.

Please contact your personal contact for delivery time information.

Detailed information on available quantities on request at
Tel. +49 (0) 42 41 9390 0

Price hint

Due to your discount rates, there may be rounding differences in the prices given compared to the actual order confirmation. The prices in the order confirmation are decisive here.

Two-way asymmetrical valve 60°, diam. 100x2 mm, stainless steel 1.4301, pickled and passivated
Technical data
Remark measurements for 2 mm piping
dimensions a 260 mm
dimensions b 90 mm
dimensions c 170 mm
dimensions dlw 99 mm
dimensions dlw1 0 mm
dimensions dlw2 0 mm
dimensions dn 100 mm
dimensions e 211 mm
dimensions f 143 mm
dimensions g 0 mm
dimensions i 0 mm
dimensions r 0 mm
execution square to round,asymmetrical
coating blasted
activity manually operated
flap seal yes
grounding lug no
length 0 mm
degree 60 °
material 1.4301
nominal width 100
maximum temperature 0 °C
minimum temperature 0 °C
maximum temperature (short-term) 0 °C
material thickness 2 mm
conductivity no
Commodity statistical number 8481 80 85
weight 0 kg
Remark mistakes and amendments reserved
