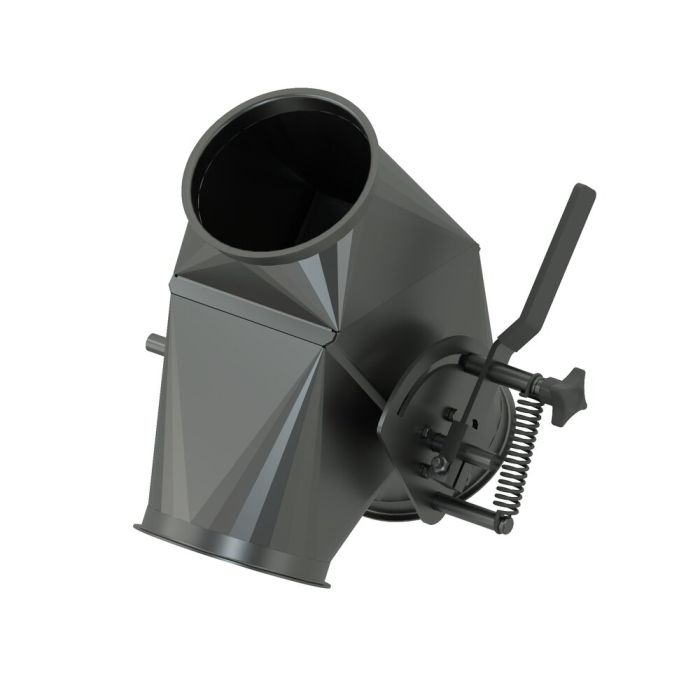

Two-way asymmetrical valve 60°, diam. 120x2 mm
KMH item number
1220201
steel DC01, no coating
Availability
Two-way asymmetrical valve 60°, diam. 120x2 mm, steel DC01, no coating
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 300 mm |
| dimensions b | 100 mm |
| dimensions c | 200 mm |
| dimensions dlw | 119 mm |
| dimensions dlw1 | 0 mm |
| dimensions dlw2 | 0 mm |
| dimensions dn | 120 mm |
| dimensions e | 222 mm |
| dimensions f | 157 mm |
| dimensions g | 0 mm |
| dimensions i | 0 mm |
| dimensions r | 0 mm |
| execution | square to round,asymmetrical |
| coating | none |
| activity | manually operated |
| flap seal | yes |
| grounding lug | no |
| length | 0 mm |
| degree | 60 ° |
| material | DC01 |
| nominal width | 120 |
| maximum temperature | 0 °C |
| minimum temperature | 0 °C |
| maximum temperature (short-term) | 0 °C |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight | 0 kg |
| Remark | mistakes and amendments reserved |
