two-way symmetrical valve 45°, diam. 120x2 mm
KMH item number
1222422F3-2D
steel DC01, galvanized
Availability
two-way symmetrical valve 45°, diam. 120x2 mm, steel DC01, galvanized

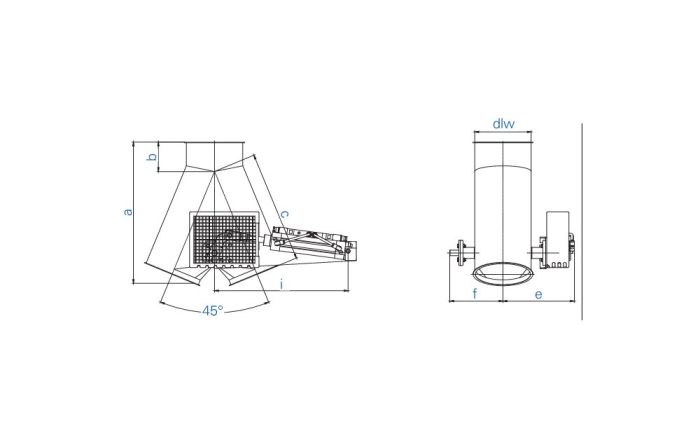

| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 353 mm |
| dimensions b | 70 mm |
| dimensions c | 280 mm |
| dimensions dlw | 119 mm |
| dimensions dn | 120 mm |
| dimensions e | 224 mm |
| dimensions f | 178 mm |
| dimensions i | 450 mm |
| drive | pneumatic double-action cylinder unit (24 V DC) |
| ATEX execution | ATEX zone 20 (inside) / zone 21 (outside) |
| execution | round design |
| coating | galvanized |
| activity | pneumatically operated |
| flap seal | yes |
| grounding lug | no |
| degree | 45 ° |
| material | DC01 |
| nominal width | 120 |
| current | DC |
| protection class | IP65 |
| control voltage | 24 V |
| material thickness | 2 mm |
| conductivity | yes |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 0,0000 |
| Remark | mistakes and amendments reserved |
