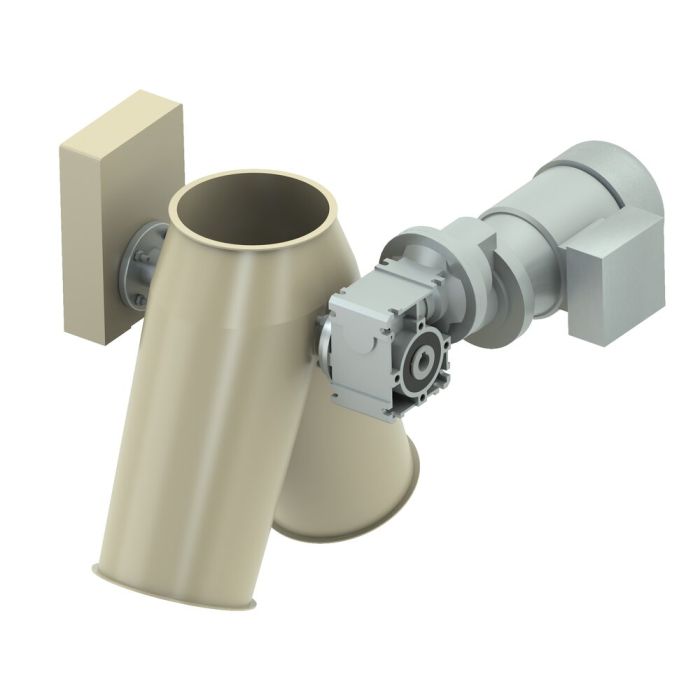

two-way symmetrical valve 45°, diam. 175x2 mm
KMH item number
1721389G5-2D
steel DC01, powder coated (RAL 7032)
Availability
two-way symmetrical valve 45°, diam. 175x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 448 mm |
| dimensions b | 90 mm |
| dimensions c | 350 mm |
| dimensions dlw | 174 mm |
| dimensions dn | 175 mm |
| dimensions e | 308 mm |
| dimensions f | 198 mm |
| drive | worm gear motor (400 V AC) |
| ATEX execution | ATEX zone 20 (inside) / zone 21 (outside) |
| execution | inner collar |
| coating | powder coated |
| activity | electrically operated |
| flap seal | no |
| grounding lug | no |
| degree | 45 ° |
| material | DC01 |
| nominal width | 175 |
| current | AC |
| control voltage | 400 V |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 0,0000 |
| Remark | mistakes and amendments reserved |
