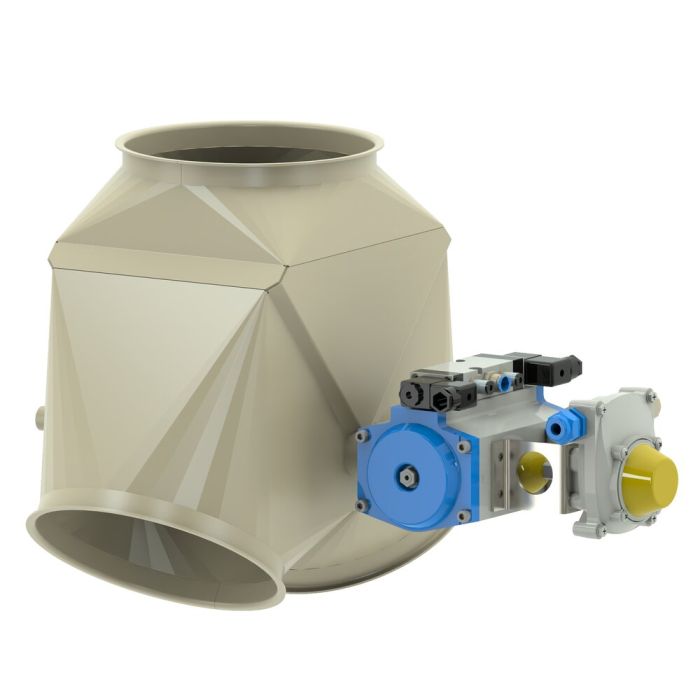

two-way symmetrical valve 60°, diam. 120x2 mm
KMH item number
1221204A1
steel DC01, powder coated (RAL 7032)
Availability
two-way symmetrical valve 60°, diam. 120x2 mm, steel DC01, powder coated inside and outside (RAL 7032)
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 259 mm |
| dimensions b | 55 mm |
| dimensions c | 200 mm |
| dimensions dlw | 119 mm |
| dimensions dn | 120 mm |
| dimensions e | 286 mm |
| dimensions f | 142 mm |
| drive | pneumatic double-action pivot drive (230 V AC) |
| execution | square to round |
| coating | powder coated |
| activity | pneumatically operated |
| flap seal | yes |
| grounding lug | no |
| degree | 60 ° |
| material | DC01 |
| nominal width | 120 |
| current | AC |
| protection class | IP67 |
| control voltage | 230 V |
| material thickness | 2 mm |
| conductivity | no |
| Commodity statistical number | 8481 80 85 |
| weight in kg | 0,0000 |
| Remark | mistakes and amendments reserved |
